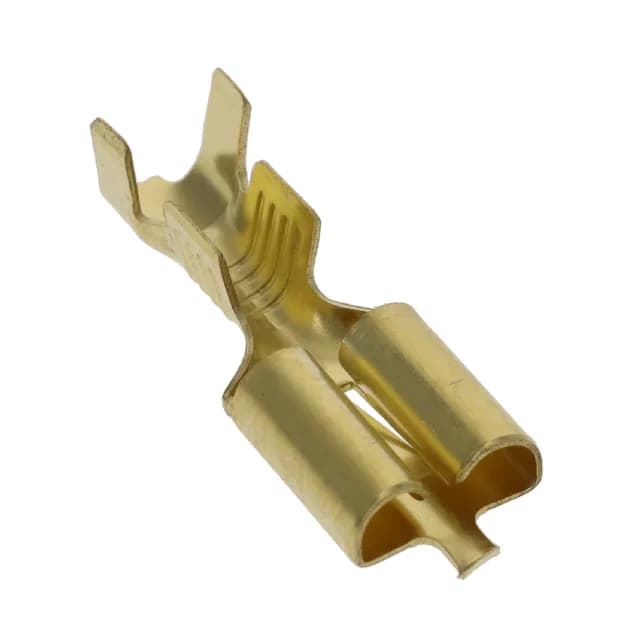

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 170089-1, female, 0.250" (6.35mm) tab width, 12-14 AWG, non-insulated, brass contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 12-14 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.756\" (19.20mm) |
| Insulation diameter | 0.114\" ~ 0.150\" (2.90mm ~ 3.81mm) |
The 170089-1 is a female quick-disconnect terminal from TE Connectivity AMP Connectors' Fastin-Faston series, accepting 12-14 AWG wire with a 0.250" (6.35mm) tab width.
The 170089-1's 0.250" tab width and 0.032" (0.81mm) tab thickness match the Utilux 1-1627194-4, but that peer accepts 15-18 AWG — the 170089-1 handles the heavier 12-14 AWG range.
The 170089-1 is ROHS3 Compliant per the lifecycle record.
