TE Connectivity AMP Connectors 170095-1 — Quick-Disconnect Terminals

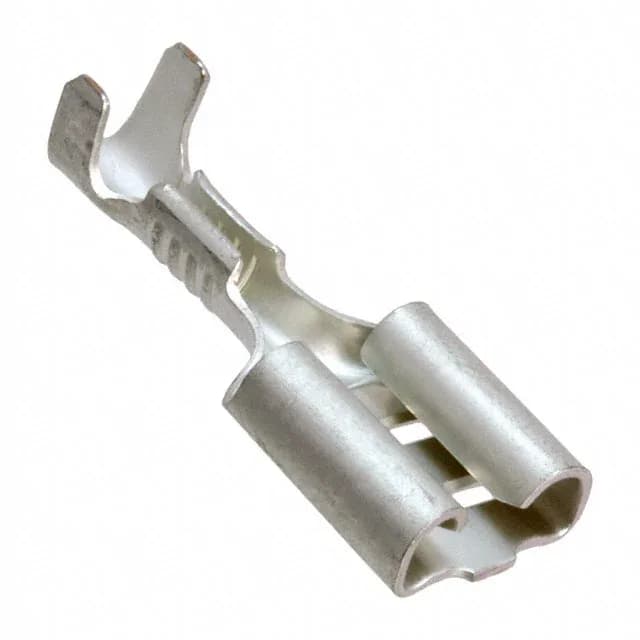

TE Connectivity Faston 170095-1 Quick-Disconnect Terminal

MPN170095-1
Active

TE Connectivity AMP Faston quick-disconnect receptacle, order code 170095-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 18-22 AWG, non-insulated, tin-plated phosphor bronze, crimp termination, free hanging.

$0.3700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

170095-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge18-22 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageBulk
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.811\" (20.60mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Quick-disconnect receptacle, Faston series

The 170095-1 is a non-insulated female quick-disconnect receptacle from the TE Connectivity AMP Faston series, accepting 0.250" (6.35mm) wide tabs with a 0.032" (0.81mm) thickness. Crimp termination for 18-22 AWG wire; the tin-plated phosphor bronze contact carries the current, with an insulation diameter range of 0.091" to 0.130" (2.31mm to 3.30mm).

Tab width and wire gauge fit

The 170095-1's 0.250" tab width and 18-22 AWG wire range differ from the 1-1659250-0 (0.248" tab, 17-20 AWG) and the 1-1627194-4 (0.250" tab, 15-18 AWG) — the 170095-1 covers the lighter wire gauge end of the 0.250" tab class.

Frequently asked questions

Will 170095-1 drop into a panel specified around 1-1659250-0 without rewiring?

The 170095-1 uses a 0.250" tab width and accepts 18-22 AWG wire; the 1-1659250-0 uses a 0.248" tab width and 17-20 AWG. The tab width difference is 0.002" — functionally the same class — but the wire gauge range differs: 170095-1 accepts lighter wire (22 AWG) while 1-1659250-0 starts at 17 AWG. Confirm the wire gauge in the harness before substituting.
