TE Connectivity AMP Connectors 170108-4 — Quick-Disconnect Terminals

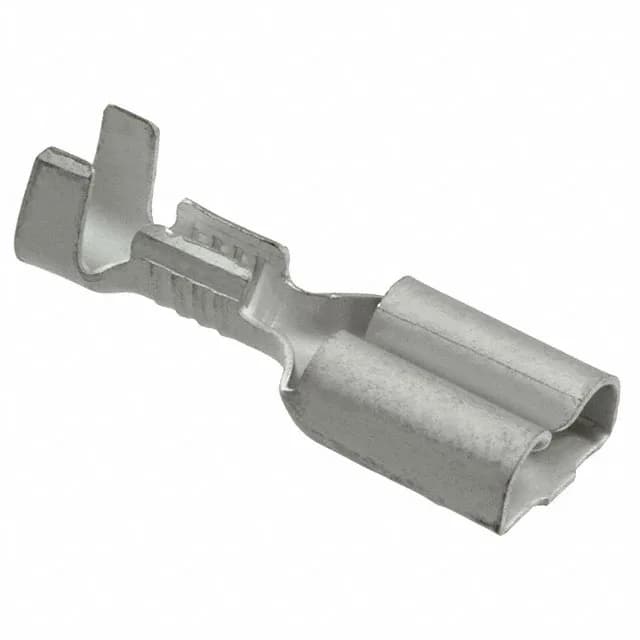

TE 170108-4 Fastin-Faston Quick-Disconnect Terminal

MPN170108-4
Active

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 170108-4, female, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated brass, non-insulated, crimp termination, free hanging, bulk.

$0.2200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

170108-4 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageBulk
InsulationNon-Insulated
Tab length0.303\" (7.70mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.807\" (20.50mm)
Insulation diameter0.122\" ~ 0.161\" (3.10mm ~ 4.09mm)

Product details

Fastin-Faston 0.250" female receptacle

The 170108-4 is the 14-18 AWG member of TE's Fastin-Faston non-insulated quick-disconnect terminal line, accepting a 0.250" (6.35mm) male tab. Tin-plated brass contact with 0.032" (0.81mm) tab thickness; crimp termination for free-hanging in-line mounting.

Tab-width and wire-range neighbours

Within the same tab width, the 170108-4 (14-18 AWG) sits between the 1-1627194-4 (15-18 AWG) and the 1-1659250-0 (17-20 AWG) — all three share the 0.250" (6.35mm) nominal width and non-insulated crimp body, so the wire-range overlap determines the fit for a given strand bundle.

Frequently asked questions

What is the closest functional second-source for 170108-4?

The 1-1659250-0 from the Utilux series shares the same non-insulated female crimp style and 0.250" tab width, but accepts 17-20 AWG wire, so it covers a narrower wire range than the 170108-4's 14-18 AWG.
