TE Connectivity AMP Connectors 170213-3 — Quick-Disconnect Terminals

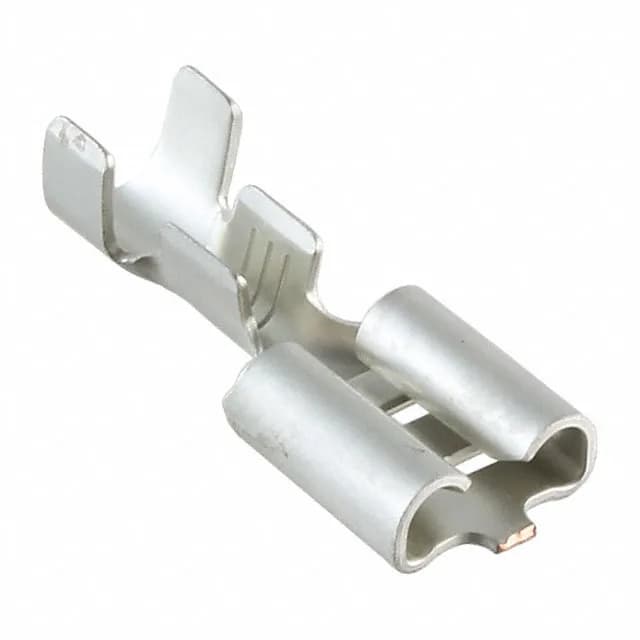

TE 170213-3 Faston Quick-Disconnect Terminal, 0.250" Tab

MPN170213-3
Active

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 170213-3, female, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging.

$0.2400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 170213-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

170213-3 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.307\" (7.80mm)
TerminationCrimp
Tab thickness0.031\" (0.79mm)
Contact finishTin
Length - overall0.744\" (18.90mm)
Insulation diameter0.100\" ~ 0.170\" (2.54mm ~ 4.32mm)

Product details

Faston female terminal for 0.250" tabs

The 170213-3 is a non-insulated female quick-disconnect terminal from the TE Faston series, accepting 0.250" (6.35mm) tab width and 14-18 AWG wire. Crimp termination with tin-plated phosphor bronze contact, rated for free-hanging in-line mounting.

Tab width and wire range vs Utilux peers

The 170213-3's 0.250" tab width and 14-18 AWG range overlap with the Utilux 1-1627194-4 (0.250", 15-18 AWG) and 1-1659250-0 (0.248", 17-20 AWG) — the 170213-3 covers a wider wire range than either Utilux peer, reducing inventory line items when the harness mixes 14 and 18 AWG.

Frequently asked questions

What compliance documentation does TE provide for 170213-3?

170213-3 is ROHS3 compliant per TE's declaration.
