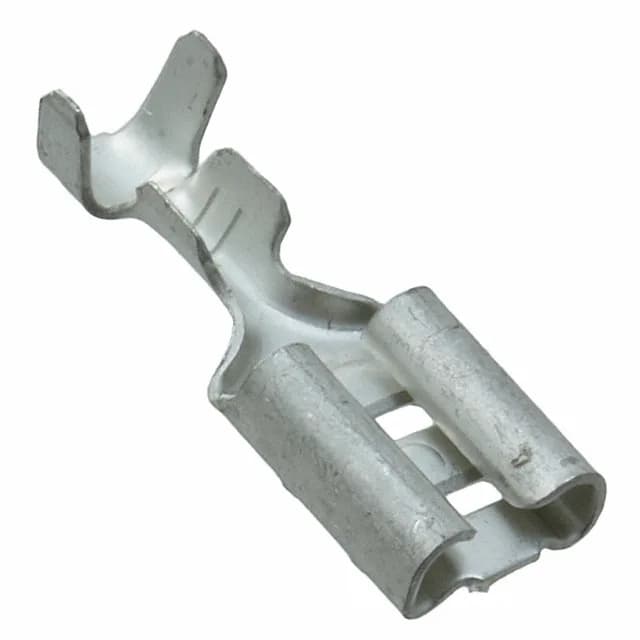

TE Connectivity Faston quick-connect receptacle, order code 170214-2, female, 0.187" (4.75mm) tab width, 20-24 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-24 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.252\" (6.40mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.591\" (15.00mm) |
| Insulation diameter | 0.059\" ~ 0.098\" (1.50mm ~ 2.50mm) |
The 170214-2 is a standard female quick-connect receptacle from the TE Connectivity Faston series, accepting 20-24 AWG wire with a 0.187" (4.75mm) tab width. The tin-plated brass contact is rated for crimp termination and free-hanging in-line mounting, non-insulated, with a tab thickness of 0.020" (0.51mm).
