Crimp termination and wire range

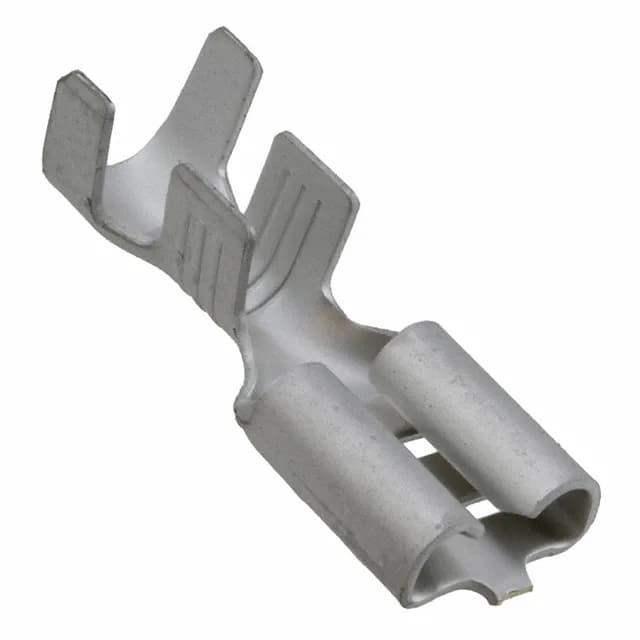

The 170224-2 is a female quick-connect receptacle from the TE Faston series, accepting 10-15 AWG wire with a crimp termination. It mates to a 0.250" (6.35mm) tab and carries a tin-plated brass contact — the tin finish suits moderate mating cycles in dry environments.
Tab fit and wire-range contrast
The 170224-2 uses a 0.250" tab width and accepts 10-15 AWG wire, while the Utilux 1-1659250-0 uses a 0.248" tab and accepts 17-20 AWG — the 170224-2 handles heavier wire but the tab dimension is nearly identical. The Utilux 1-1627194-4 also shares a 0.250" tab width but accepts 15-18 AWG, making the 170224-2 the heavier-wire choice among these non-insulated crimp receptacles.
