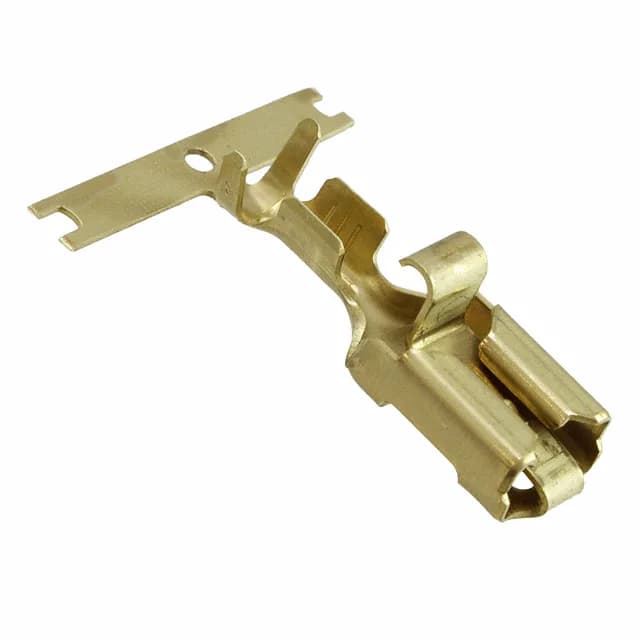

TE Connectivity AMP Mark I quick-disconnect terminal, order code 170233-1, female, 0.250" (6.35 mm) tab width, 14-20 AWG, non-insulated, crimp termination, free hanging (in-line), brass contact.
| Parameter | Value |
|---|---|
| Series | Mark I |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.870\" (22.10mm) |
| Insulation diameter | 0.083\" ~ 0.134\" (2.11mm ~ 3.40mm) |
The 170233-1 is the female non-insulated quick-disconnect terminal in TE's Mark I series, accepting 14-20 AWG wire and crimping onto a 0.250" (6.35 mm) wide tab. Tab thickness is 0.032" (0.81 mm); the brass contact carries a standard barrel profile and is supplied in Tape & Reel or Cut Tape packaging.
Female gender, Mark I series.
Both share 0.250" tab width, female gender, non-insulated crimp termination, free-hanging mount, and brass contact material. The 170233-1 accepts a wider wire range (14-20 AWG vs 15-18 AWG) and ships in Tape & Reel instead of Box — mechanical fit is the same, but the wire size difference may require a terminal change if the existing wire is outside 14-20 AWG.
