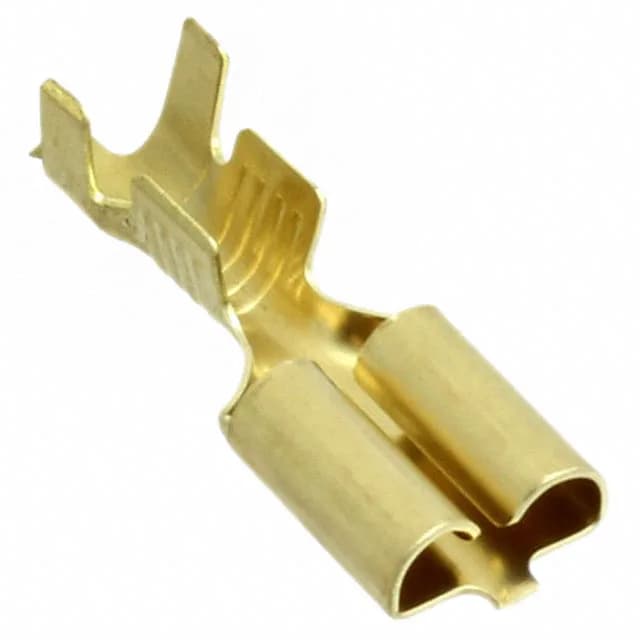

TE Connectivity AMP Connectors 170258-1 — Quick-Disconnect Terminals

TE 170258-1 Quick-Disconnect Terminal, 12-14 AWG, 0.250" Tab

MPN170258-1
Active

TE Connectivity AMP Connectors quick-disconnect terminal, order code 170258-1, female, 0.250" (6.35mm) tab width, 0.307" (7.80mm) tab length, 12-14 AWG, brass contact, non-insulated, crimp termination, free hanging.

$0.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

170258-1 specifications
ParameterValue
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge12-14 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.307\" (7.80mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.756\" (19.20mm)
Insulation diameter0.114\" ~ 0.150\" (2.90mm ~ 3.81mm)

Product details

Tab width and wire gauge match

The 170258-1 is a female quick-disconnect terminal from TE Connectivity AMP Connectors, accepting 12-14 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The brass contact is non-insulated and terminates via crimp for free-hanging (in-line) installation.

Series and positions

Within the Utilux series, the 170258-1's 12-14 AWG wire range and 0.250" tab width are shared by the 1-1627194-4 (15-18 AWG) and the 1-1659250-0 (17-20 AWG) — the tab thickness and brass contact material are common across the series, so the selection narrows to the wire gauge the harness carries.

Frequently asked questions

What is the closest functional second-source to 170258-1?

The 1-1627194-4 shares the same 0.250" tab width, female gender, non-insulated crimp termination, and brass contact material, but accepts 15-18 AWG wire — the 170258-1 handles 12-14 AWG.

What compliance documentation does TE provide for 170258-1?

The terminal is ROHS3 compliant per the manufacturer's listing.
