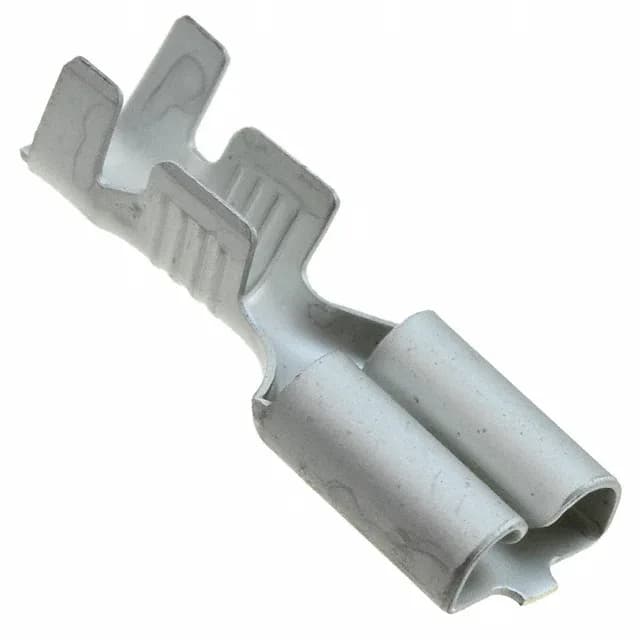

TE Connectivity AMP Connectors quick-disconnect terminal, order code 170258-2, female, 0.250" (6.35mm) tab width, 12-14 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 12-14 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.756\" (19.20mm) |
| Insulation diameter | 0.114\" ~ 0.150\" (2.90mm ~ 3.81mm) |
The 170258-2 is a female quick-disconnect terminal from TE Connectivity AMP Connectors, accepting 12-14 AWG wire with a crimp termination. Tab width is 0.250" (6.35mm), tab thickness 0.032" (0.81mm), and the contact is tin-plated brass — suited for power and signal connections in wire-to-wire applications.
Available in Tape & Reel (TR) or Cut Tape (CT) packaging. No single-vendor lock; the 0.250" tab width and non-insulated body cross to other TE series terminals.
