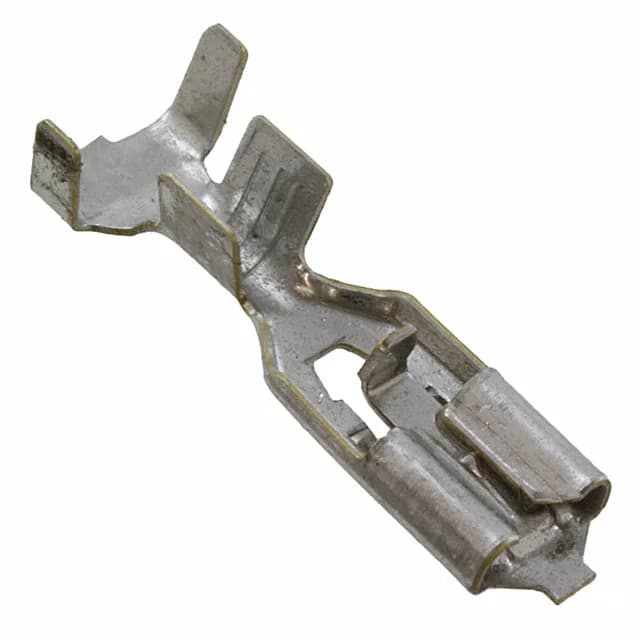

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 170326-5, female, 0.187" (4.75mm) tab width, 14-18 AWG, tin-plated phosphor bronze, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.236\" (6.00mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.850\" (21.59mm) |
| Insulation diameter | 0.083\" ~ 0.141\" (2.11mm ~ 3.58mm) |
The 170326-5 is a Mark II series female quick-disconnect receptacle from TE Connectivity AMP Connectors, accepting 0.187" (4.75mm) tab width. It crimps onto 14-18 AWG wire with a free-hanging inline mount and carries tin-plated phosphor bronze contacts.
The 170326-5 accepts a 0.187" (4.75mm) tab width with a 0.020" (0.51mm) tab thickness.
The 170326-5 crimps onto 14-18 AWG wire and accepts an insulation diameter of 0.083" to 0.141" (2.11mm to 3.58mm).
