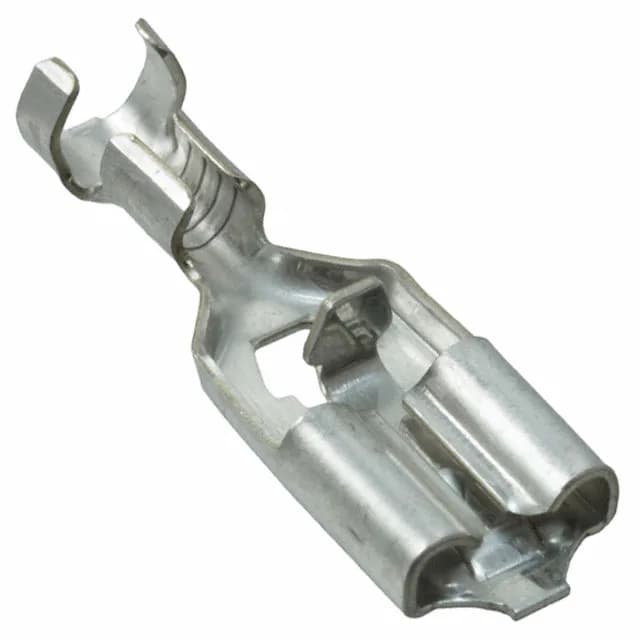

TE Connectivity AMP Connectors Mark II quick-disconnect receptacle, order code 170327-1, female, 0.250" (6.35mm) tab width, 18-22 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 1.016\" (25.80mm) |
| Insulation diameter | 0.059\" ~ 0.122\" (1.50mm ~ 3.10mm) |
The 170327-1 is a non-insulated female quick-disconnect receptacle from the TE Mark II series, accepting 18-22 AWG wire and mating to a 0.250" (6.35mm) tab. Crimp termination with tin-plated brass contact; overall length 1.016" (25.80mm) and tab thickness 0.032" (0.81mm).
