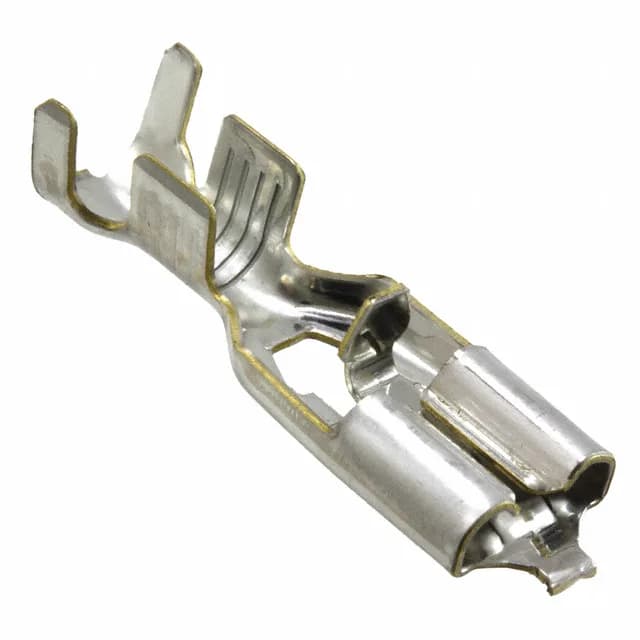

TE Connectivity AMP Connectors Mark II quick-disconnect receptacle, order code 170329-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 10-15 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging (in-line).
TE 170329-1 Quick-Disconnect Terminal, 0.250" Tab
MPN170329-1
Active
TE Connectivity AMP Connectors Mark II quick-disconnect receptacle, order code 170329-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 10-15 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging (in-line).
$0.2100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMark II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-15 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 1.016\" (25.80mm) |
| Insulation diameter | 0.118\" ~ 0.201\" (3.00mm ~ 5.10mm) |
Product details
Frequently asked questions
What wire gauge range does the 170329-1 accept?
The 170329-1 accepts 10-15 AWG wire, with an insulation diameter range of 0.118" to 0.201" (3.00mm to 5.10mm).
