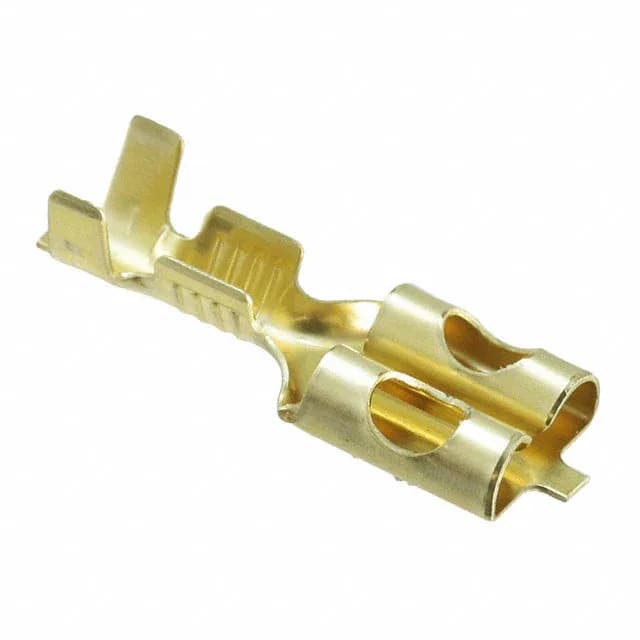

TE Connectivity AMP Connectors 250 series quick-disconnect terminal, order code 170342-1, female, 0.250" (6.35mm) tab width, 14-20 AWG, brass, non-insulated, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | 250 |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Length - overall | 0.772\" (19.61mm) |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 170342-1 is a non-insulated female quick-disconnect terminal in TE's 250 series, accepting 14-20 AWG wire with a 0.250" (6.35mm) tab width. Crimp termination and free-hanging in-line mounting suit field harness assembly; the brass contact carries no insulation, so a separate insulator or heat-shrink sleeve is needed where exposed conductors must be covered.
