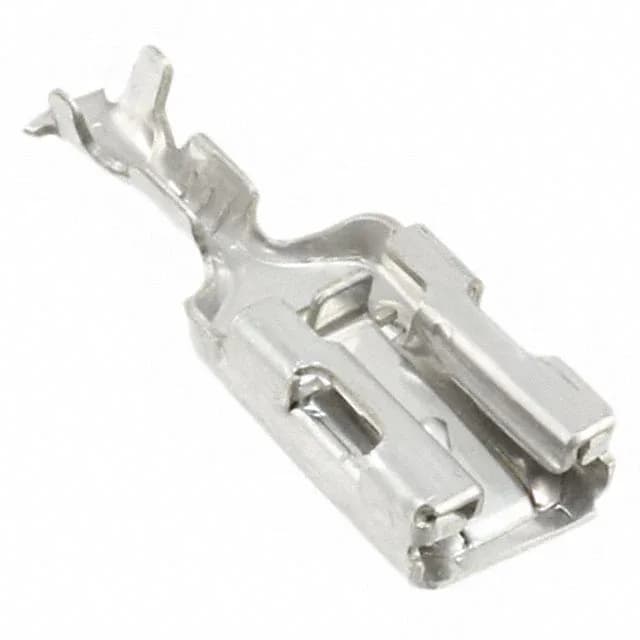

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 170452-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 20-22 AWG, tin-plated brass, crimp termination, non-insulated, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-22 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.898\" (22.80mm) |
| Insulation diameter | 0.059\" ~ 0.094\" (1.50mm ~ 2.39mm) |
The 170452-2: Tin-plated brass contact material suits moderate-cycle applications where corrosion resistance is not the primary concern — the tin finish mates with matching male tabs and crimps onto stripped wire without additional insulation.
The terminal accepts 20-22 AWG wire and mates with a 0.250" (6.35mm) wide tab that is 0.032" (0.81mm) thick.
