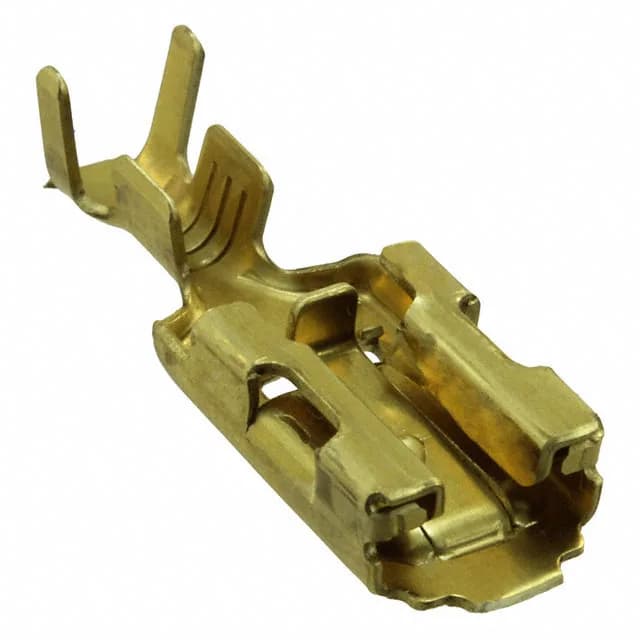

TE Connectivity AMP Connectors Mark II quick-disconnect receptacle, order code 170454-1, female, 0.250" (6.35mm) tab width, 14-18 AWG, non-insulated, brass contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.898\" (22.80mm) |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 170454-1 is the female quick-disconnect receptacle in TE's Mark II series, accepting 0.250" (6.35mm) male tabs. It crimps onto 14-18 AWG wire and uses a brass contact with a 0.032" (0.81mm) tab thickness. Non-insulated; free-hanging in-line mounting.
The 170454-1 is a female quick-disconnect receptacle, mating with a 0.250" (6.35mm) male tab.
