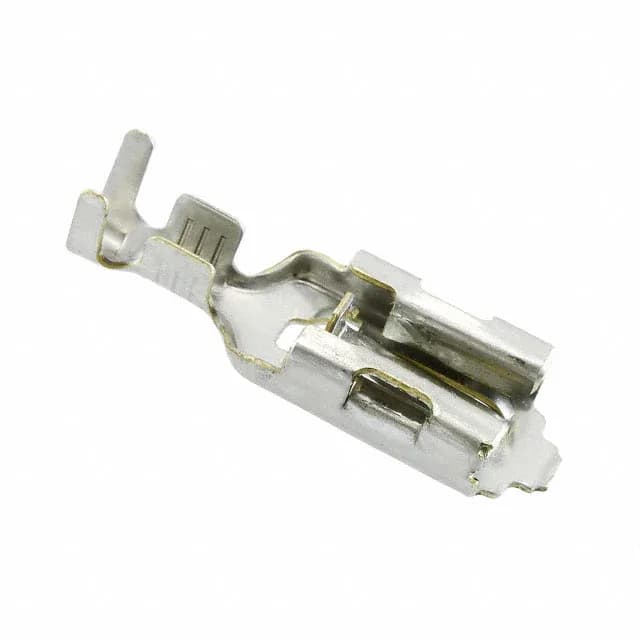

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 170454-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.898\" (22.80mm) |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 170454-2: Tin-plated brass contact with crimp termination; free-hanging in-line mounting. Rated ROHS3 compliant.
Within the Mark II 0.250" tab-width family, the 170454-2's 14-18 AWG range sits between the 20-22 AWG 170452-2 and the 10-12 AWG 170456-2. All share the same tab width, tab thickness, overall length, and tin-plated brass construction — the wire gauge and insulation diameter are the only variables.
The 170454-1 shares the same tab width, tab thickness, wire gauge range, overall length, and tin-plated brass construction — the two are functionally identical for the same 14-18 AWG circuit.
The 170454-2 is ROHS3 Compliant. No other compliance certifications (UL, CSA, IEC) are listed in the available specifications.
