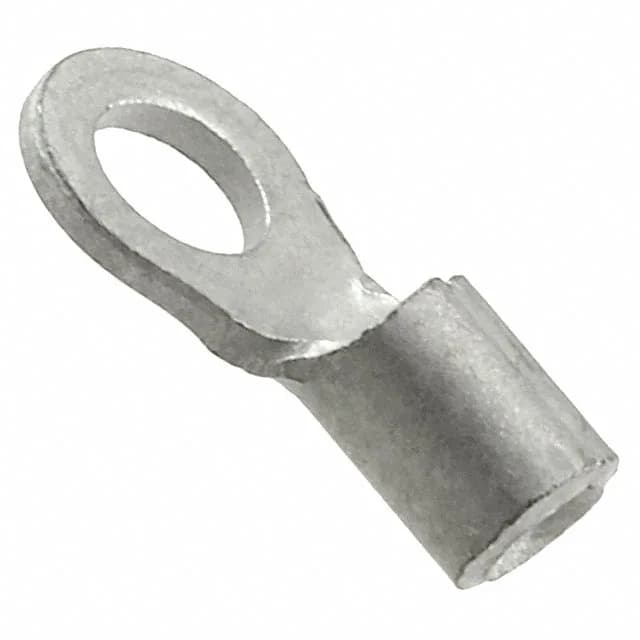

TE Connectivity AMP Connectors Solistrand ring terminal, order code 170720-1, circular, 18-22 AWG, #5 stud, tin-plated copper, non-insulated, 0.031" (0.79mm) thickness, crimp termination, bulk.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.217\" (5.50mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5 Stud |
| Contact finish | Tin |
| Length - overall | 0.492\" (12.50mm) |
The 170720-1 is a non-insulated circular ring terminal in TE's Solistrand series, accepting 18-22 AWG wire and terminating to a #5 stud. The tin-plated copper contact is 0.031" (0.79mm) thick with a serrated termination barrel for grip on stranded wire; the terminal is crimp-applied and free-hanging.
The 170720-1 is RoHS Compliant.
