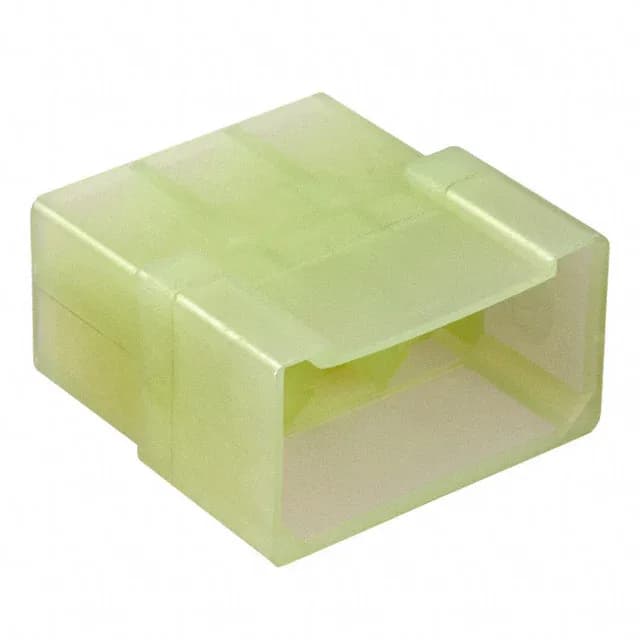

TE Connectivity AMP Connectors Fastin-Faston housing, order code 171433-1, 6 positions, 0.250" (6.35mm) tab size, male tab, quick disconnect style, natural nylon, free hanging in-line, bulk package.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Natural |
| Material | Nylon |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Male, Tab |
| Package | Bulk |
| Stacking direction | Top to Bottom and Side to Side |
| Positions | 6 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 171433-1 is a 6-position male tab housing in TE Connectivity's Fastin-Faston series, designed for 0.250" (6.35mm) quick-connect terminals.
The housing allows stacking in both directions, so a 6-position block can be ganged with identical housings to scale circuit count without a custom mold — each cavity accepts the same 0.250" tab terminal.
No — the housing ships without contacts. The note 'Contacts Not Included' means the 0.250" quick-connect tabs must be ordered separately.
