TE Connectivity AMP Connectors 171506-1 — Ring Terminals

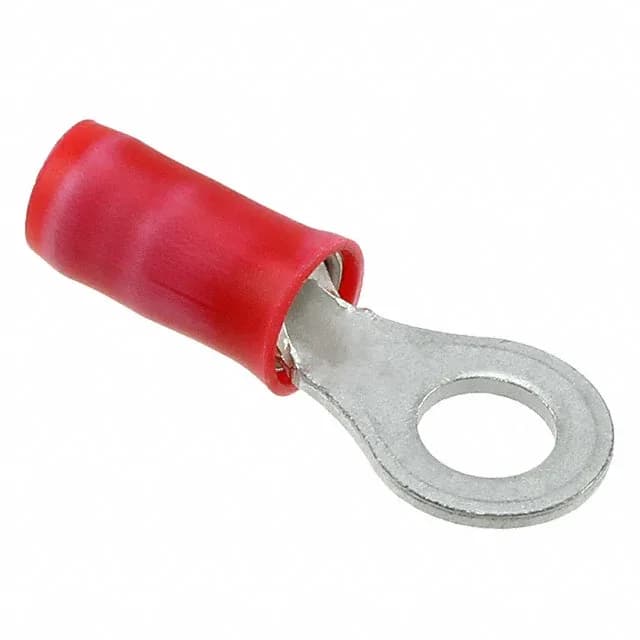

TE PIDG 171506-1 Ring Terminal, 18-22 AWG, #8 Stud

MPN171506-1
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 171506-1, 18-22 AWG, #8 stud, circular, tin-plated copper, insulated, serrated crimp, 0.031" (0.79mm) thickness, free hanging in-line.

$1.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

171506-1 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge18-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.311\" (7.90mm)
PackageBulk
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.823\" (20.90mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

PIDG ring terminal, 18-22 AWG, #8 stud

The 171506-1 is a PIDG-series insulated ring terminal from TE Connectivity AMP Connectors, crimp-terminated, accepting 18-22 AWG wire onto a #8 stud.

Same-series peers: Solistrand non-insulated

The 171506-1 is insulated; the Solistrand-series 1377172-7 (14-16 AWG, #8 stud) and 133521-1 (18-22 AWG, #8 stud, gold-plated) are non-insulated, same 0.031" thickness. The insulation on the PIDG terminal adds a larger overall length (0.823" vs 0.636" on 1377172-7) and a wider outer edge (0.311" vs 0.343").
