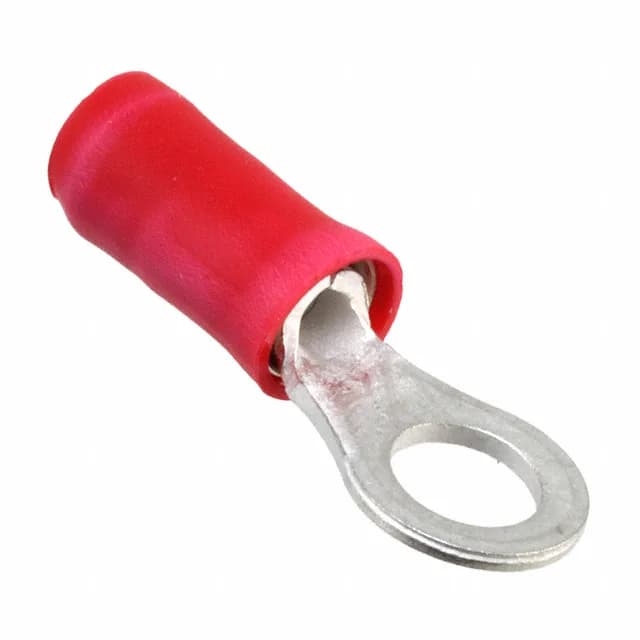

TE Connectivity PIDG ring terminal, order code 171508-2, 18-22 AWG, #8 stud size, circular terminal type, tin-plated copper contact, insulated, 0.031" (0.79mm) thickness, crimp termination, free hanging in-line mount, red color.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.280\" (7.11mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.799\" (20.29mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
The 171508-2 is a PIDG-series insulated ring terminal from TE Connectivity, accepting 18-22 AWG wire with a crimp termination and a #8 stud size. The tin-plated copper contact is 0.031" (0.79mm) thick with serrated termination for grip, and the red insulation covers a wire insulation diameter of 0.080" to 0.125" (2.03mm to 3.18mm).
