TE Connectivity AMP Connectors 171632-1 — Quick-Disconnect Terminals

TE 171632-1 QC Receptacle, 12-16 AWG, 0.250" Tab

MPN171632-1
Active

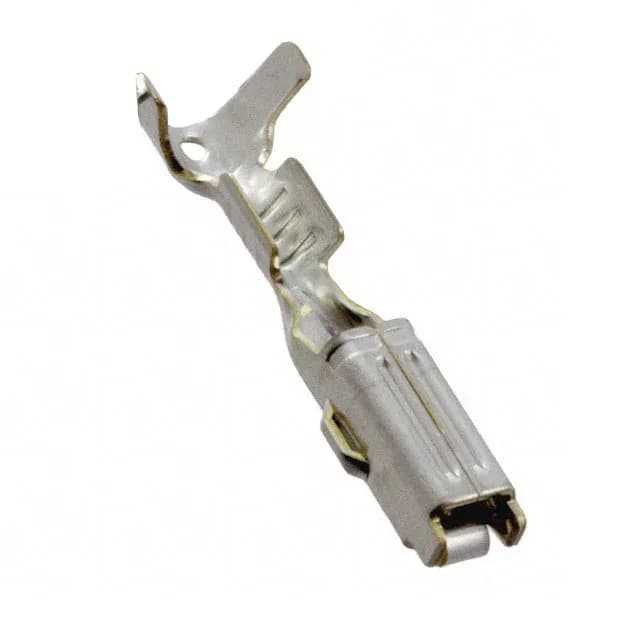

TE Connectivity EconoSeal J Mark II 250 quick-connect receptacle, order code 171632-1, female, 0.250" (6.35mm) tab width, 12-16 AWG, brass contact, serrated crimp termination, free hanging (in-line), non-insulated.

$0.2200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 171632-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEconoSeal J Mark II 250
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

171632-1 specifications
ParameterValue
SeriesEconoSeal J Mark II 250
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge12-16 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationNon-Insulated
Tab length0.307\" (7.80mm)
TerminationCrimp
Length - overall0.846\" (21.50mm)
Insulation diameter0.098\" ~ 0.161\" (2.50mm ~ 4.09mm)

Product details

Crimp termination, 12-16 AWG range

The 171632-1 is a non-insulated female quick-connect receptacle from the TE EconoSeal J Mark II 250 series, accepting 12-16 AWG wire via a serrated crimp barrel for conductor grip. The brass contact mates with 0.250" (6.35mm) male tabs and is rated for free-hanging in-line mounting; the serrated termination resists pull-out under vibration.

Tab width and wire gauge cross-reference

The 171632-1's 0.250" (6.35mm) tab width and 12-16 AWG acceptance differ from the Utilux 1-1627194-4 (same tab width, 15-18 AWG) and the Utilux 1-1659250-0 (0.248" / 6.30mm tab, 17-20 AWG) — the 171632-1 covers heavier wire than either peer.
