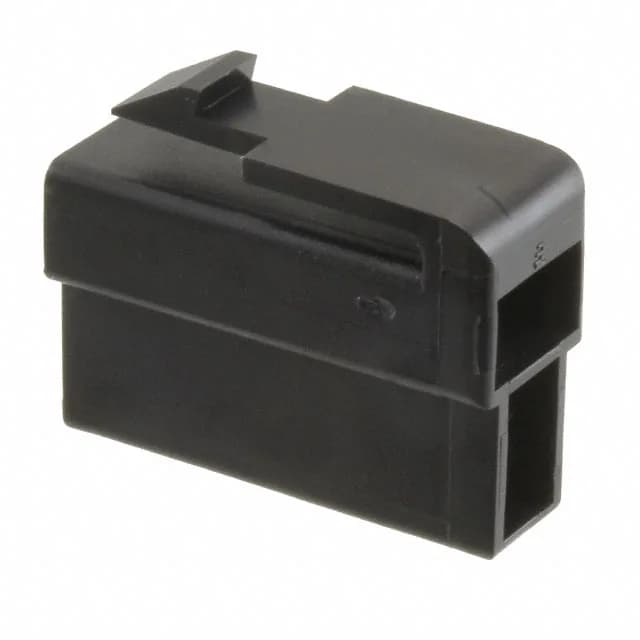

TE Connectivity AMP Connectors 250 series housing, order code 172130-2, 2 positions, 0.250" (6.35mm) terminal size, female receptacle, black nylon, free hanging (in-line), quick connect disconnect, bag package.
| Parameter | Value |
|---|---|
| Series | 250 |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Black |
| Material | Nylon |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Female, Receptacle |
| Package | Bag |
| Stacking direction | Perpendicular |
| Positions | 2 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 172130-2 is a 2-position female receptacle housing from TE Connectivity's 250 series, designed for 0.250" (6.35mm) quick-connect terminals. The black nylon body mounts free hanging (in-line) with perpendicular stacking direction — contacts must be ordered separately.
The housing ships without crimp contacts — the 0.250" (6.35mm) quick-connect terminals must be ordered separately to complete the assembly.
