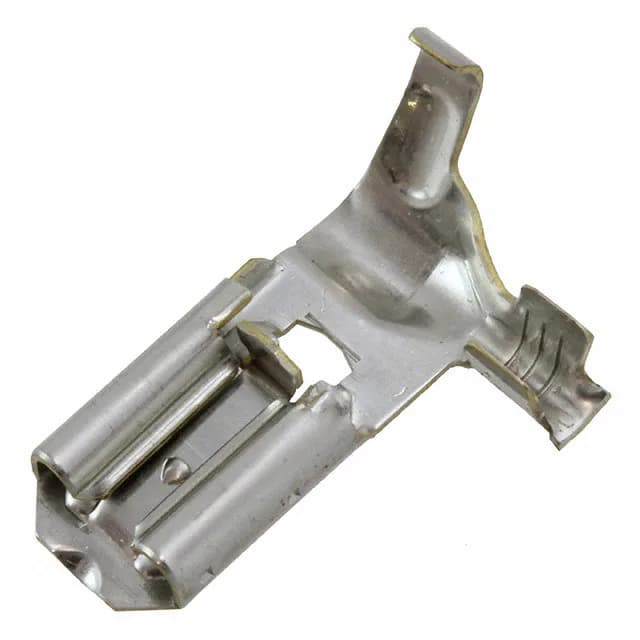

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 172763-1, female, flag (90°), 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, tin-plated brass, crimp termination, free hanging in-line right-angle mount.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.110\" ~ 0.205\" (2.79mm ~ 5.21mm) |
The 172763-1: The 90° angled crimp body routes the wire parallel to the tab plane, suiting it for tight enclosures where a straight terminal would conflict with the housing wall.
The 172765-1 shares the same tab width and geometry but steps up to 12-14 AWG wire, so the 172763-1 is the choice for the 14-18 AWG range.
The 172763-2 is the same Mark II flag terminal with identical tab width, wire gauge, and tin plating, differing only in contact material (copper alloy vs brass).
Yes, the 172763-1 and 172763-2 share the same 0.250" tab width, 0.032" tab thickness, 14-18 AWG wire range, and flag geometry — the contact material difference (brass vs copper alloy) does not affect mechanical fit.
