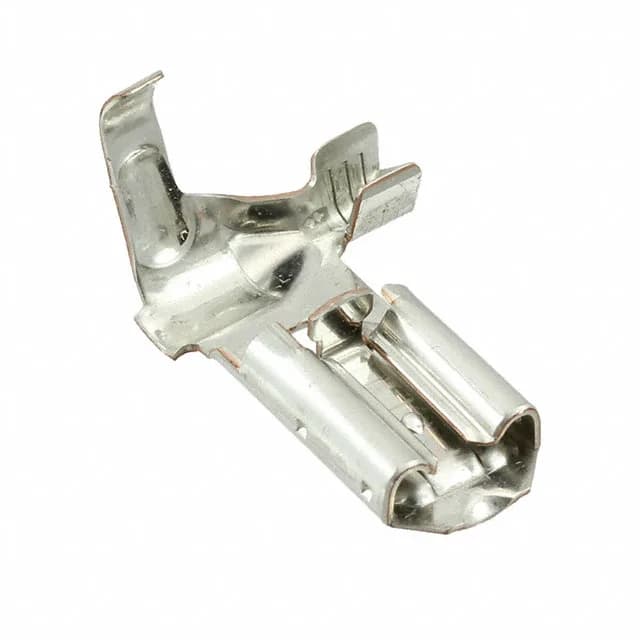

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 172763-2, female, 0.250" (6.35mm) tab width, 14-18 AWG, tin-plated copper alloy, crimp termination, free hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Copper Alloy |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.110\" ~ 0.205\" (2.79mm ~ 5.21mm) |
The 172763-2: Crimp termination secures the tin-plated copper alloy contact; the right-angle flag orientation suits free-hanging inline routing where a straight terminal would crowd adjacent wires.
The 172763-2 uses a copper alloy contact; the 172763-1 uses brass.
The 172763-1 is the closest peer: same tab width, wire range, and tin plating, but with a brass contact instead of copper alloy. Both are active and use the same crimp tooling.
The 172763-2 is ROHS3 Compliant per TE Connectivity AMP Connectors.
