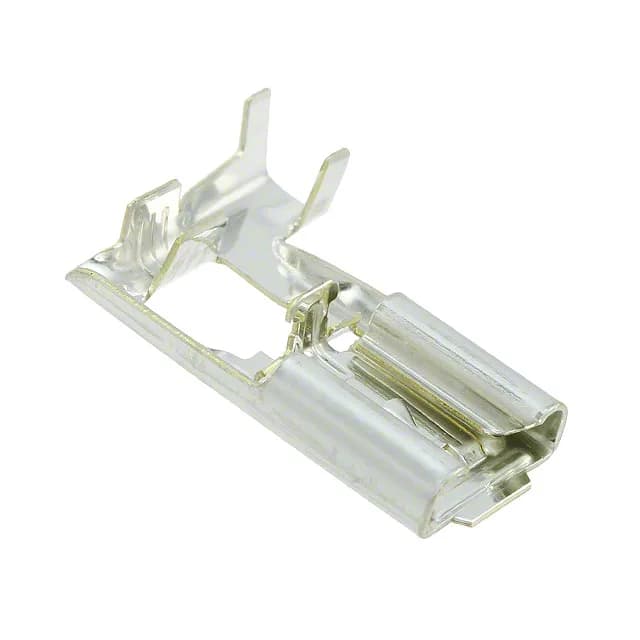

TE Connectivity AMP Mark II quick-disconnect terminal, order code 172795-1, female, 0.312" (7.92mm) tab width, 0.335" (8.50mm) tab length, 14-20 AWG, tin-plated brass, crimp termination, free-hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-20 AWG |
| Tab width | 0.312\" (7.92mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.335\" (8.50mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 172795-1 is a female quick-disconnect terminal in TE's Mark II series, configured as a 90° flag for right-angle wire entry. It mates with 0.312" (7.92mm) tab receptacles and accepts 14-20 AWG wire. Tin-plated brass contact with a crimp barrel that accepts insulation diameters from 0.087" to 0.134" (2.21mm to 3.40mm). Non-insulated body suited for applications where post-mate insulation is applied separately.
The terminal is ROHS3 Compliant per the manufacturer's declaration. No UL or IEC file numbers are listed in the available spec data.
