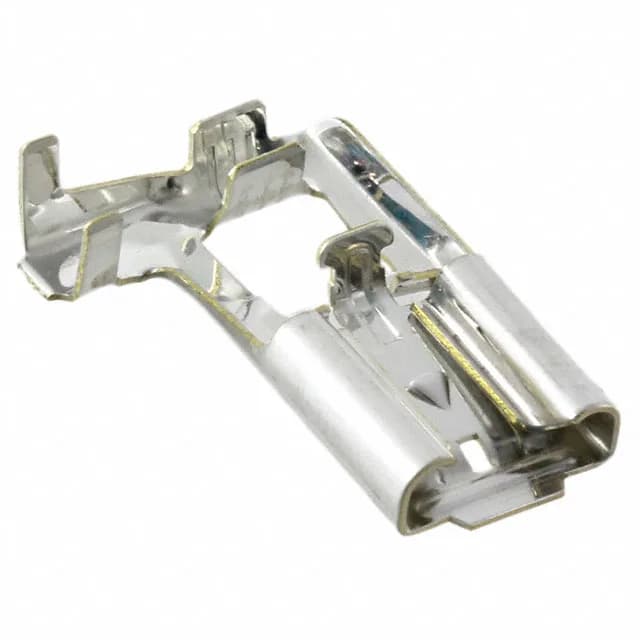

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 172796-1, female flag, 0.312" (7.92mm) tab width, 0.032" (0.81mm) tab thickness, 14-16 AWG, tin-plated brass, crimp termination, free hanging right-angle.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 14-16 AWG |
| Tab width | 0.312\" (7.92mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.335\" (8.50mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 172796-1 is a female flag quick-disconnect terminal in TE's Mark II series, accepting 14-16 AWG wire with a 0.312" (7.92mm) tab width and 0.032" (0.81mm) tab thickness. The tin-plated brass contact and crimp termination suit power and signal disconnects in free-hanging, right-angle installations.
The terminal is ROHS3 compliant; no UL or other agency certifications are listed in the product record.
