It carries two rows of contacts arranged with the outer shroud contact style — the mating plug needs inner contacts to match this geometry. The 40-position count matches a 40-conductor ribbon cable, and the.050-inch pitch (1.27 mm) is the standard for this series — pitch has to match the ribbon, or the IDC bites between conductors instead of onto them.

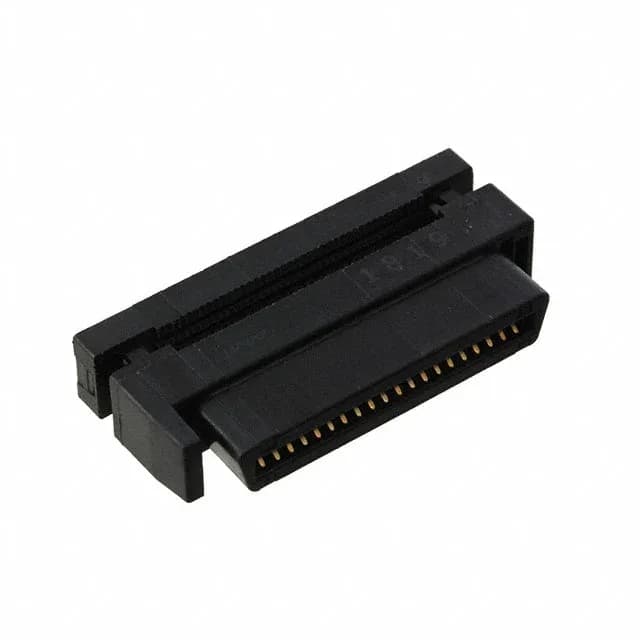

TE CHAMP .050 I 1734098-4, 40-Pos IDC Receptacle
MPN1734098-4
Active
TE Connectivity CHAMP.050 I series, Receptacle, 40 Positions, 2 Row, IDC, Free Hanging, Gold Flash Contacts, 1734098-4.
$13.5400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CHAMP .050 I |
| Mounting | Free Hanging (In-Line) |
| Connector type | Outer Shroud Contacts |
| Package | Tube |
| Termination | IDC |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 40 |
| Contact finish thickness | Flash |
Product details
Frequently asked questions
Is 1734098-4 RoHS compliant?
Yes, the 1734098-4 is listed as ROHS3 Compliant, meeting the latest EU RoHS directive requirements.
