TE Connectivity AMP Connectors 1734098-7 — Centronics Connectors

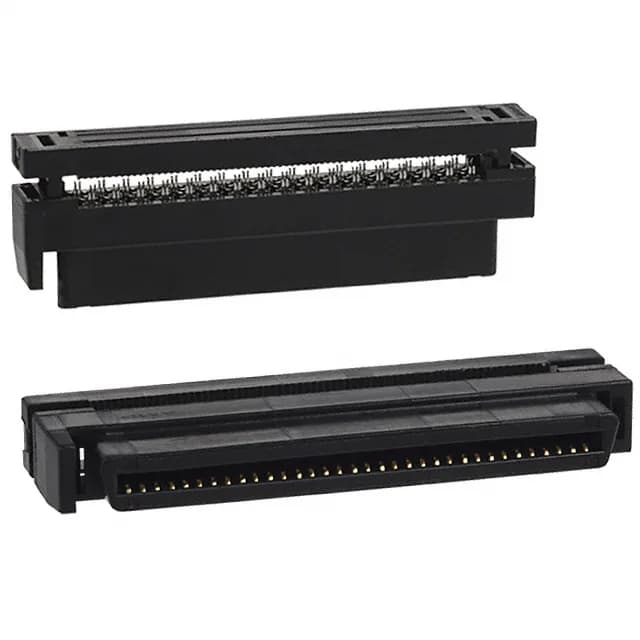

TE CHAMP .050 I 1734098-7, 68-pos IDC Receptacle

MPN1734098-7
Active

TE Connectivity CHAMP.050 I series, 1734098-7, 68-position dual-row receptacle, IDC termination, free-hanging, gold flash contacts, outer shroud.

$12.4600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1734098-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1734098-7 specifications
ParameterValue
SeriesCHAMP .050 I
MountingFree Hanging (In-Line)
Connector typeOuter Shroud Contacts
PackageTube
TerminationIDC
Contact finishGold
Rows2
Positions68
Contact finish thicknessFlash

Product details

68-Position Ribbon Cable Receptacle for Parallel Signal Bundles

The TE Connectivity 1734098-7 is a 68-position receptacle from the CHAMP.050 I series, designed to mass-terminate ribbon cable via IDC (insulation displacement) contacts. It mounts free-hanging — no board lock or panel flange — so it lives at the cable end, plugging into a matching header on a backplane or I/O card. Outer shroud contacts mean the signal pins are recessed inside the shell, which protects them from damage during alignment and mating. This is the kind of connector you see on printer cables, test-equipment I/O, or internal ribbon harnesses in industrial controllers.

IDC Termination — No Stripping, No Soldering

IDC termination presses ribbon cable conductors onto bifurcated contact tines that slice through insulation and grip the conductor.

Frequently asked questions

What is the 1734098-7 connector type and series?

The 1734098-7 is a 68-position receptacle from the TE Connectivity CHAMP.050 I series, with IDC termination and a free-hanging mount.

Does 1734098-7 have outer shroud contacts?

Yes, the connector style is listed as Outer Shroud Contacts, meaning the signal contacts are recessed inside a protective shell for alignment and mechanical protection during mating.
