TE Connectivity AMP Connectors 1734099-5 — Centronics Connectors

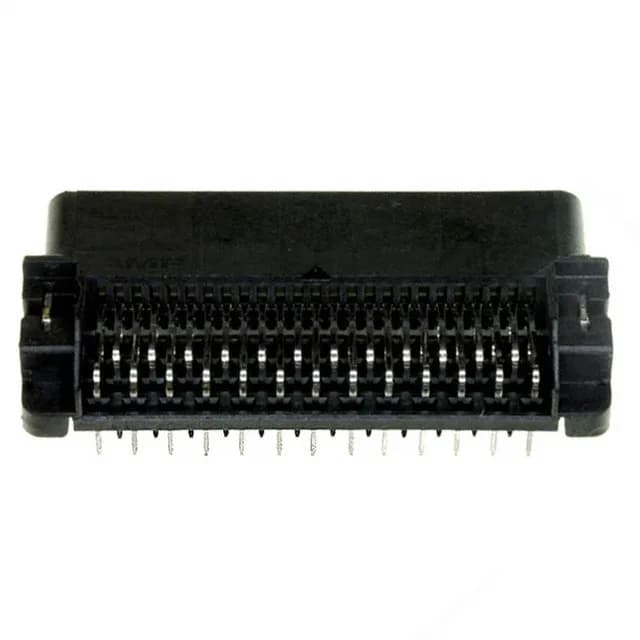

TE CHAMP .050 I 1734099-5, 50-Pos Board-to-Board Plug

MPN1734099-5
Active

TE Connectivity CHAMP.050 I series, Board to Board, Plug, 50 Positions, 2 Rows, Through Hole, Right Angle, Solder, Gold Flash Contacts, Board Lock

$5.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1734099-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1734099-5 specifications
ParameterValue
TypeBoard to Board
SeriesCHAMP .050 I
MountingThrough Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Rows2
Positions50
Contact finish thicknessFlash

Product details

50-Position Right-Angle Board-to-Board Plug

The TE Connectivity 1734099-5 is a 50-position board-to-board plug from the CHAMP.050 I series, terminated through-hole and mounted at a right angle to the PCB. The two-row arrangement with center strip contacts mates with a matching receptacle to form a parallel board stack.

Board Lock Retention and Right-Angle Footprint

For a 50-position connector, those locks matter: the insertion force of a full-population mate can shift an unsecured part off its pads.

Frequently asked questions

1734099-5 datasheet pdf

Engineers need the datasheet to verify electrical and mechanical specifications before design-in.

1734099-5 price and availability

Sourcing buyers must check price and stock to fill BOM lines and manage procurement.

where to buy 1734099-5

Transactions are completed when the buyer locates a reliable distributor with stock.

1734099-5 equivalent connector

Design engineers and sourcing teams need alternatives to manage supply chain risk or cost.

1734099-5 pinout diagram

Techs and engineers require pinout for correct integration and troubleshooting.

1734099-5 replacement part number

Maintenance techs need a direct replacement when the original is unavailable or obsolete.
