TE Connectivity AMP Connectors 1734099-7 — Centronics Connectors

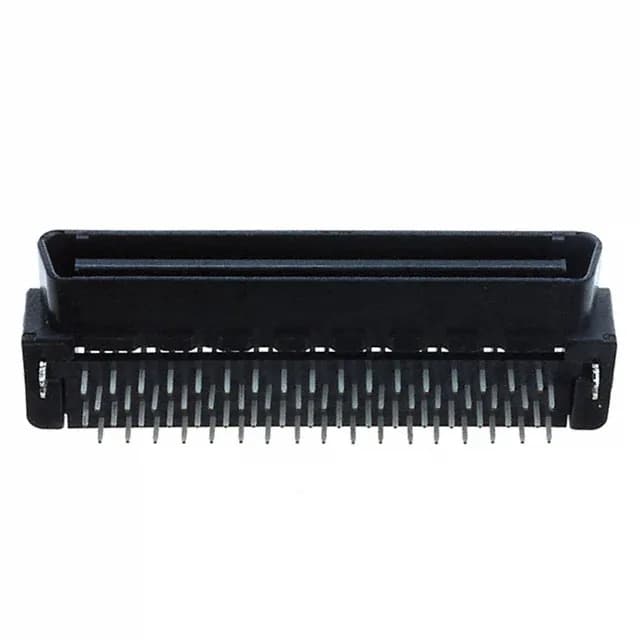

TE CHAMP .050 I 1734099-7, 68-Pos Board-to-Board Plug

MPN1734099-7
Active

TE Connectivity CHAMP.050 I board-to-board plug, 1734099-7, 68 positions, 2 rows, right-angle through-hole, solder termination, gold flash contacts, board lock, tray.

$6.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1734099-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1734099-7 specifications
ParameterValue
TypeBoard to Board
SeriesCHAMP .050 I
MountingThrough Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Rows2
Positions68
Contact finish thicknessFlash

Product details

Board-to-Board Plug with Center Strip Contacts

The TE Connectivity CHAMP.050 I 1734099-7 is a 68-position board-to-board plug with center strip contacts, arranged in two rows.

Gold flash on the contacts keeps contact resistance low for the first several dozen cycles, but if your application calls for frequent reconnections — say, more than 50 cycles — a thicker gold plating grade would be the better call.

Sourcing

Confirm the 68-position count and the mating receptacle half before committing the BOM line.

Frequently asked questions

What is the mating connector for 1734099-7?

The 1734099-7 is a plug from the CHAMP.050 I series; it mates with the matching CHAMP.050 I receptacle housing of the same 68-position, 2-row layout. Stock both halves or neither — an orphan plug is dead stock.

Is 1734099-7 RoHS compliant?

Yes, it is ROHS3 Compliant, meeting the latest EU RoHS directive without exemptions.
