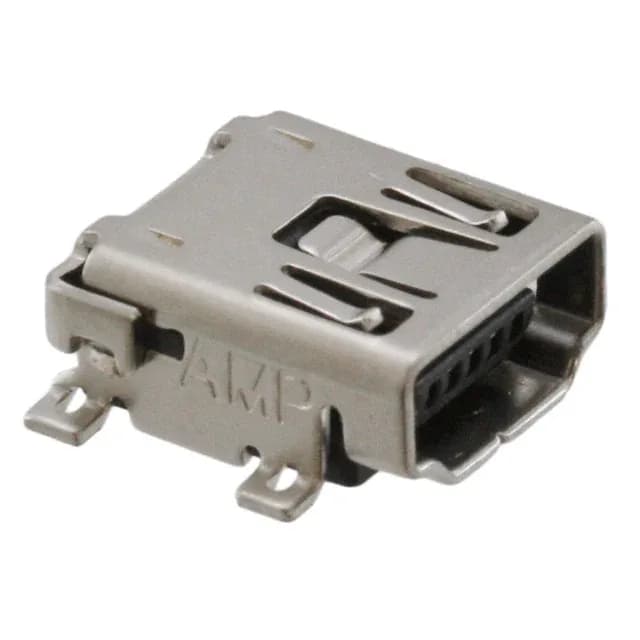

TE Connectivity, USB - mini A, Receptacle, 5 Contacts, 1 Port, Surface Mount, Right Angle, Solder Termination, Gold Contact Finish, USB 2.0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - mini A |
| Voltage - rated | 30VAC |
| Current rating | 1A |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Guide, Solder Retention |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Right-angle SMD mounting means the connector's solder tails and alignment features are on the bottom face, reflowed onto the board in a single pass. The horizontal mounting feature confirms the connector body lies flat against the board edge, with the mating face accessible from the side. Supplied in a tray for pick-and-place handling.
