USB mini AB receptacle, 5 contacts, USB 2.0

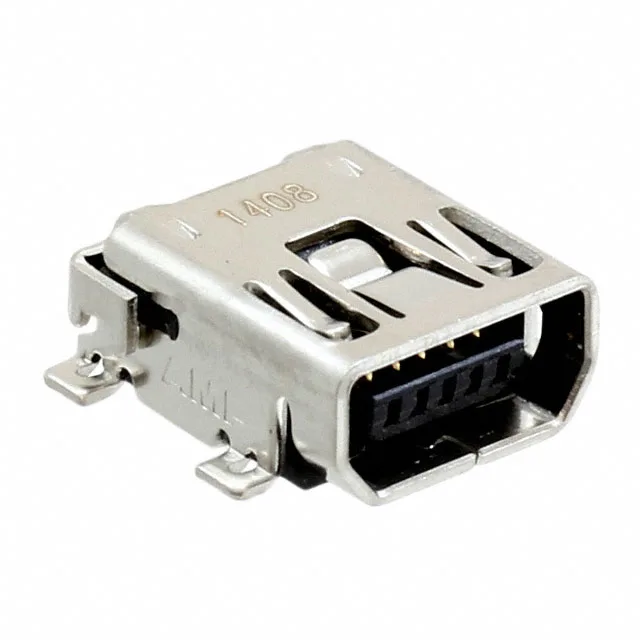

The TE Connectivity 1734328-1 is a 5-contact USB mini AB receptacle, built to USB 2.0 specifications. It's the receptacle half — the board-mounted side that accepts a mini A or mini B plug. Rated 1 A per contact at 30 VAC, this is a signal-and-low-power interconnect — think data transfer with a small charge current, not a power bus. The gold-plated contacts handle the 5000 mating cycles without wearing through, so it holds up in field-service scenarios where the cable gets plugged and unplugged regularly.
Mounting and footprint
The board guide and solder retention features help align the part during reflow and keep the solder joints from cracking under cable strain. Supplied in tray packaging, which is the standard format for machine-placed SMD connectors on a pick-and-place line.
