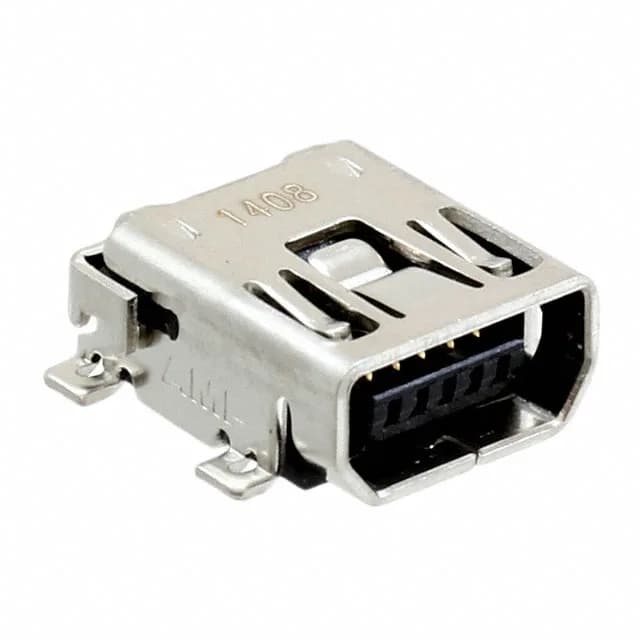

TE Connectivity, USB - mini AB receptacle, 1734328-2, 5 contacts, SMT right-angle, gold, 1A, 30VAC, USB 2.0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - mini AB |
| Voltage - rated | 30VAC |
| Current rating | 1A |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The right-angle SMT body mounts horizontally to the board, with integrated board guides and solder retention features that keep the connector aligned through reflow and resist shear from cable strain.
Rated for 5000 mating cycles. The phosphor bronze shell provides the shielding return path and resists corrosion in humid environments.
A mini AB receptacle accepts both mini A and mini B plugs; a mini A receptacle accepts only mini A plugs. The 1734328-2 is a mini AB receptacle, so it accepts either plug type.
