TE Connectivity AMP Connectors 1734510-1 — USB / HDMI Cable Assemblies

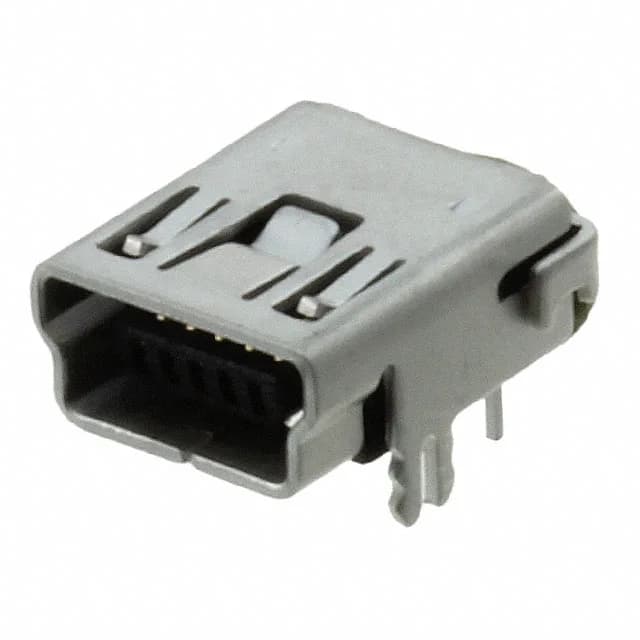

TE 1734510-1 USB 2.0 Mini B Receptacle, 5 Pos, R/A

MPN1734510-1
Active

TE Connectivity USB 2.0 mini B receptacle, 5 positions, right-angle through-hole, shielded, board lock, 1 A, 30 VAC, gold contacts, 5000 mating cycles.

$2.1100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1734510-1 key specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeUSB - mini B
Voltage - rated30VAC
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel (SUS304)
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray

All specifications

1734510-1 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-Angle Mini B for Panel-Mount Duty

The TE 1734510-1 is a USB 2.0 mini B receptacle, 5 positions, in a right-angle through-hole package with a shielded steel (SUS304) shell. Gold contact finish handles the 5000 mating cycle rating without wearing through to base metal.

5000 Mating Cycles — Industrial-Grade Endurance

Standard consumer-grade USB mini B connectors typically spec 1500–2000 cycles; the TE 1734510-1 triples that, with the gold plating and steel shell construction to back it up.

Shielded Shell and USB 2.0 Signal Path

The steel (SUS304) shielding provides EMI containment for the USB 2.0 differential pair, rated for 480 Mbps. This is a USB 2.0-only part — it is not compatible with USB 3.0 or 3.x SuperSpeed signalling.

Through-hole right-angle mounting with a horizontal orientation — the connector body sits flush against the PCB edge. Solder termination on all five contacts; the shell has additional solder tabs for ground connection and mechanical retention. Supplied in tray packaging.

Frequently asked questions

Where can I buy the TE 1734510-1 USB mini B connector?

Submit an RFQ for your quantity.

Is the 1734510-1 compatible with USB 3.0?

No — the 1734510-1 is specified for USB 2.0 only (480 Mbps). It is not rated for USB 3.0 SuperSpeed signalling.

Does the 1734510-1 have a board lock feature?

Yes — the connector includes board lock features (integral retention posts) that anchor it to the PCB during soldering and resist cable strain during mating.

What is the mating cycle rating for the TE 1734510-1?

Rated for 5000 mating cycles, which is significantly higher than typical consumer-grade USB mini B connectors.
