TE Connectivity AMP Connectors 1734592-8 — FFC / FPC Cable Assemblies

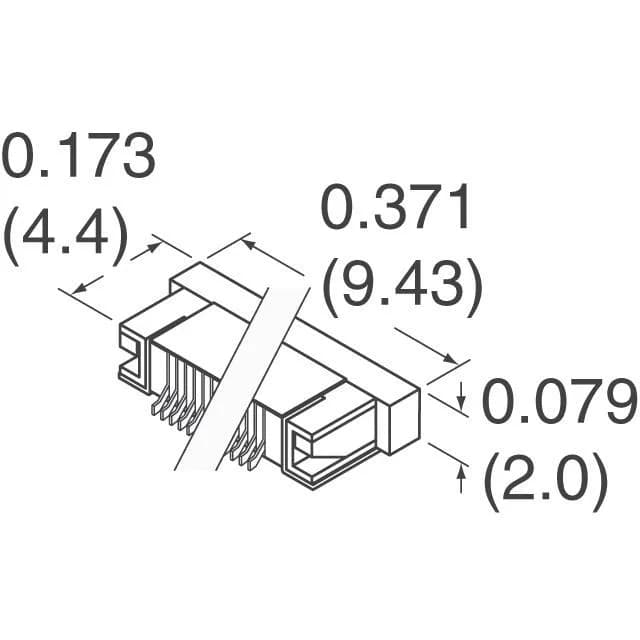

1734592-8 TE Connectivity FPC Connector, 8 Pos, 0.50mm, ZIF

MPN1734592-8
Active

TE Connectivity AMP 1734592-8, FPC connector, 8 positions, 0.50 mm pitch, bottom contact, ZIF slide-lock actuation, surface-mount right-angle, gold flash on phosphor bronze contacts, 0.5 A per circuit, 250 V rating, UL94 V-0 LCP housing.

$0.6600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1734592-8 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1734592-8 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-40°C~85°C
Housing colorNatural
Actuator colorIvory
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialThermoplastic

All specifications

1734592-8 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions8
Contact finish thicknessFlash

Product details

8-Position FPC Connector — 0.50 mm Pitch, ZIF Slide Lock

The 1734592-8 is an 8-circuit, 0.50 mm pitch FPC connector from TE Connectivity's 1734592 series, with a bottom-contact ZIF design and a slide-lock actuator. The ZIF mechanism means the FPC slides in without force; the slide lock then clamps the contacts. This avoids the bent-beam failures common in non-ZIF connectors, especially when the FPC is inserted at an angle.

FPC Fit and Termination Checklist

The bottom-contact configuration means the FPC conductors face the PCB, so the connector body sits on top of the FPC.

Frequently asked questions

What FPC thickness does the 1734592-8 accept?

It accepts 0.30 mm thick FPC. The cable end should be tapered to aid insertion into the ZIF slot.

Is the 1734592-8 RoHS compliant?

Yes, it is ROHS3 compliant.

Where can I buy the 1734592-8?

Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
