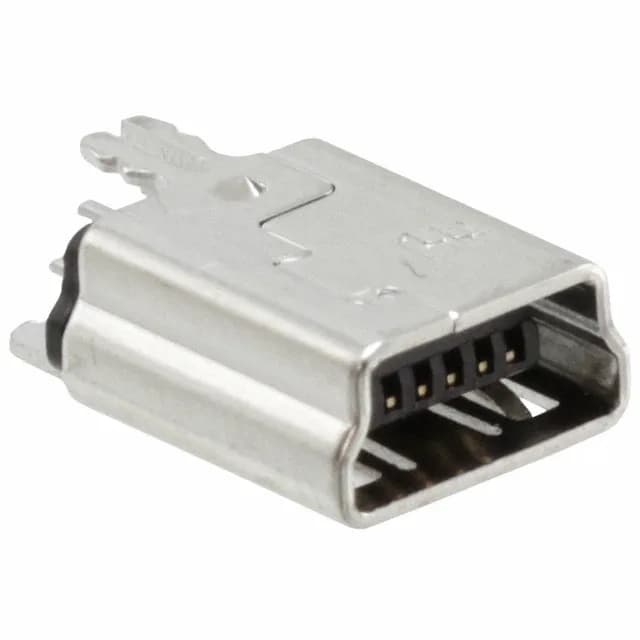

Vertical USB Mini B with 5000-Cycle Endurance
What 5000 Mating Cycles Means for Field Service
Rated for 5000 mating cycles, this receptacle outlasts the typical USB mini B connector by a factor of three or more. The gold contact finish on both mating surfaces resists fretting corrosion across repeated plug/unplug cycles, making it a candidate for test equipment, data loggers, or any application where the cable is disconnected regularly. Compare with the TE 1734366-1 USB-A receptacle, which carries 1500 cycles — the mini B's cycle life is the differentiator here, not the current rating.
Board Layout: Vertical Mount and Board Lock
The vertical mounting orientation places the USB port perpendicular to the PCB, which suits enclosure designs where the cable enters from above rather than the edge. The board lock feature — two through-hole retention posts — holds the connector in place during soldering and provides mechanical resistance to the plug insertion force. The 5-contact footprint follows the USB mini B standard; the shell's four ground legs and the centre pin are the primary mechanical anchors.
