TE Connectivity AMP Connectors 1735284-2 — Pluggable Assemblies

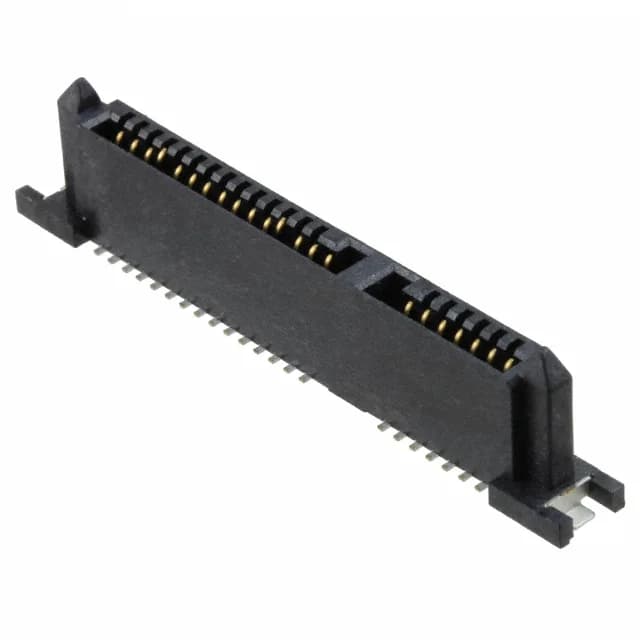

TE Connectivity 1735284-2 SATA Receptacle, 22 Position

MPN1735284-2
Active

TE Connectivity SATA receptacle, 22 positions, surface mount, gold 15.0µin contact finish, board lock, tray package.

$3.1600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1735284-2 specifications
ParameterValue
MountingSurface Mount
Connector typeReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Positions22
Contact finish thickness15.0µin (0.38µm)

Product details

SATA Receptacle for Board-Mount Storage Interfaces

The TE Connectivity 1735284-2 is a 22-position SATA receptacle designed for surface-mount attachment to a PCB.

This receptacle is terminated by reflow soldering — the SMT tails align with the PCB pads, and the board locks snap into plated through-holes or slots for mechanical retention before solder. The 22-position layout follows the standard SATA signal and power contact arrangement, so the footprint matches the mating SATA plug found on drives and cables.

Frequently asked questions

What is the mating connector for 1735284-2?

This SATA receptacle mates with the standard SATA plug found on drive cables and storage devices — the 22-position contact arrangement is defined by the SATA specification.

Where can I buy 1735284-2?

This part is active and sourced to order.
