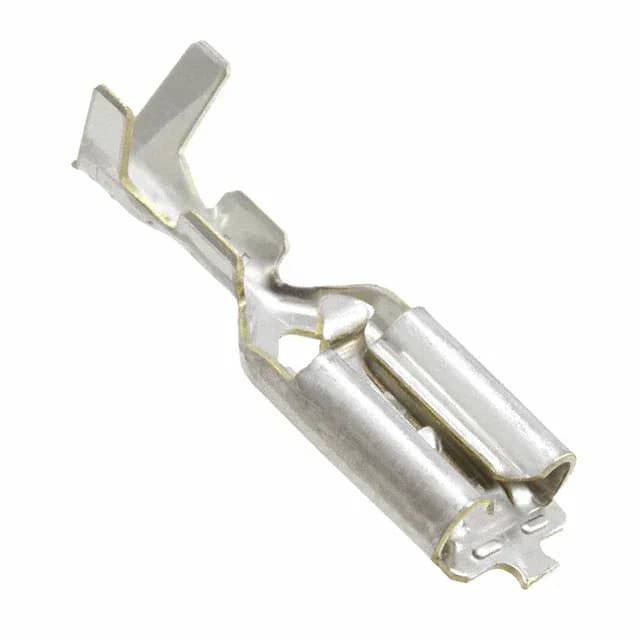

TE Connectivity Positive Lock EX quick disconnect receptacle, order code 173722-1, female, 0.187" (4.75mm) tab width, 20-26 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Positive Lock EX |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-26 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.287\" (7.30mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.677\" (17.20mm) |
| Insulation diameter | 0.051\" ~ 0.142\" (1.30mm ~ 3.61mm) |
The 173722-1 is a female quick disconnect receptacle from the Positive Lock EX series, accepting 20-26 AWG wire with a tin-plated brass contact. Crimp termination suits free-hanging in-line installation; the non-insulated barrel accepts an insulation diameter of 0.051" to 0.142" (1.30mm to 3.61mm).
Orderable under the listed part number.
