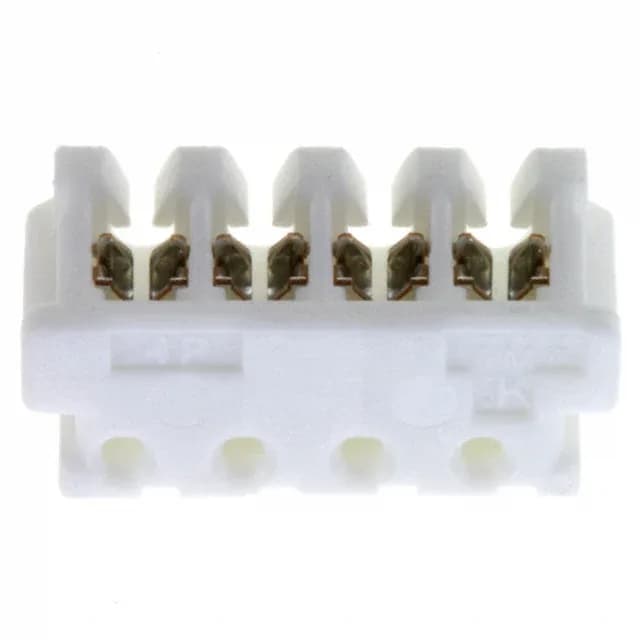

TE Connectivity CT series, 173977-4, 4-position receptacle, 0.079" (2.00mm) pitch, 1 row, IDC termination, 26-28 AWG, tin contacts, free hanging, natural, bulk.
| Parameter | Value |
|---|---|
| Series | CT |
| Wire type | Discrete |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 26-28 AWG |
| Cable termination | IDC |
| Color | Natural |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 4 |
The specified wire range is 26-28 AWG discrete; using wire outside that gauge risks poor contact or insulation damage. The free-hanging (in-line) mounting suits cable-to-board or cable-to-cable connections where the receptacle floats rather than being panel-mounted.
The 4-position count and single-row layout must match the header's position count and row configuration — a 4-position single-row header is the correct mate.
Yes, the 173977-4 is RoHS compliant.
The 173977-4 mates with a 4-position, single-row, 2.00 mm pitch CT series header (male pin strip). Confirm the header's position count and row configuration match before ordering.
The 173977-4 accepts 26-28 AWG discrete wire for IDC termination.
