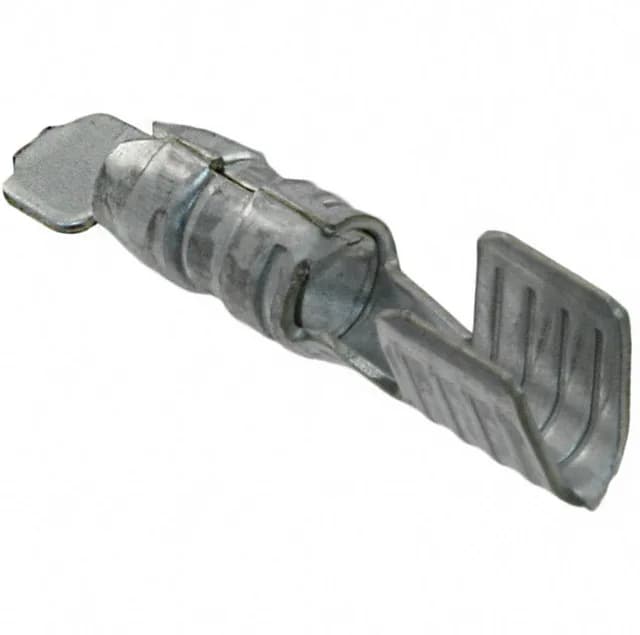

TE Connectivity AMP Connectors Shur-Plug terminal pin, order code 1742039-1, 10-14 AWG, non-insulated, crimp termination, tin-plated brass, 0.156" (3.96mm) barrel diameter, 0.300" (7.62mm) barrel length, 0.805" (20.45mm) overall length.
| Parameter | Value |
|---|---|
| Series | Shur-Plug |
| Terminal type | Male, Pin (Plug) |
| Wire gauge | 10-14 AWG |
| Contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - barrel | 0.300\" (7.62mm) |
| Length - overall | 0.805\" (20.45mm) |
| Diameter - barrel | 0.156\" (3.96mm) |
The 1742039-1 is a male pin terminal in TE Connectivity's Shur-Plug series, accepting 10-14 AWG wire with a non-insulated crimp barrel. The tin-plated brass contact measures 0.156" (3.96mm) barrel diameter and 0.300" (7.62mm) barrel length, with an overall length of 0.805" (20.45mm).
