Flag-style Faston for tight wire routing

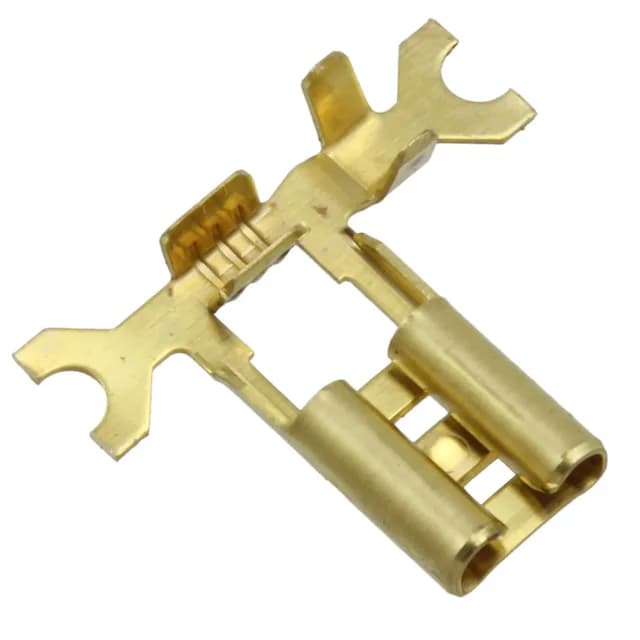

The 1742086-1 is a female quick-disconnect terminal in the TE Faston series, configured as a 90° flag for right-angle wire exit in free-hanging or in-line harnesses.
Tab dimensions and wire range
The tab measures 0.187" (4.75mm) wide by 0.020" (0.51mm) thick — a standard Faston size that mates with male tabs of the same dimensions. The flag orientation suits applications where the wire must run parallel to the mating tab surface, saving space over an in-line terminal. Wire range is 18-22 AWG with an insulation diameter of 0.060" to 0.110" (1.52mm to 2.79mm). The non-insulated barrel requires post-crimp insulation or a separate boot if the application needs environmental protection.
