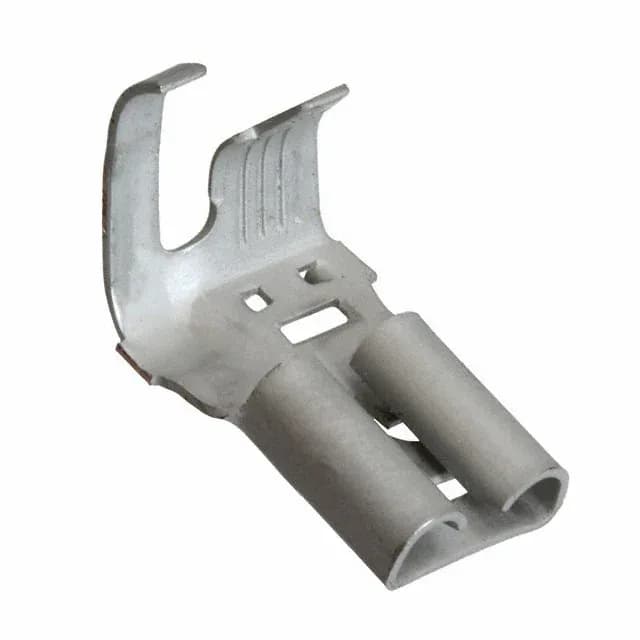

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 1742291-1, female, 0.250" (6.35mm) tab width, 13-17 AWG, tin-plated phosphor bronze contact, non-insulated, crimp termination, free-hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 13-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Insulation diameter | 0.110\" ~ 0.210\" (2.79mm ~ 5.33mm) |
The 1742291-1 is a non-insulated Faston flag receptacle from TE Connectivity AMP Connectors, designed for 0.250" (6.35mm) male tabs and 13-17 AWG wire. The right-angle flag orientation keeps the wire parallel to the tab, saving clearance in tight panel layouts — a common fit on relay and switch terminals where a straight receptacle would hit the enclosure wall.
