TE Connectivity AMP Connectors 1742718-1 — Quick-Disconnect Terminals

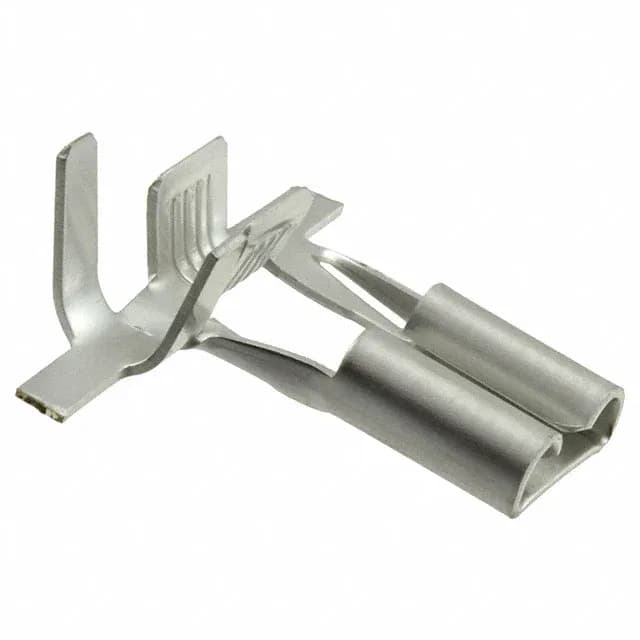

TE 1742718-1 Faston Flag QC Receptacle, 12-16 AWG

MPN1742718-1
Active

TE Connectivity AMP Connectors Faston flag receptacle, order code 1742718-1, female, 0.250" (6.35mm) tab width, 12-16 AWG, tin-plated brass contact, crimp termination, non-insulated, free hanging.

$0.2000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1742718-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeAngled - 90°, Flag
Wire gauge12-16 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.120\" ~ 0.170\" (3.05mm ~ 4.32mm)

Product details

Flag receptacle for 12-16 AWG

The 1742718-1 is a Faston series flag receptacle from TE Connectivity AMP Connectors, designed for 12-16 AWG wire and a 0.250" (6.35mm) tab. The 90-degree angled flag body and tin-plated brass contact suit power distribution and heavy-current circuits where a straight-in crimp won't fit the panel layout.

Tab width and wire range

The 0.250" tab width and 12-16 AWG wire range set this flag receptacle apart from the narrower 0.248" (6.30mm) 1-1659250-0 (17-20 AWG) and the 0.250" 1-1627194-4 (15-18 AWG) — match the tab width and wire gauge to the mating male tab and cable load.

Frequently asked questions

Will 1742718-1 drop into a panel specified around 1-1659250-0 without rewiring?

No — the 1-1659250-0 accepts 17-20 AWG wire, while 1742718-1 accepts 12-16 AWG. The tab widths differ slightly (0.248" vs 0.250") and the wire gauge range is different, so a direct mechanical or electrical swap is not supported.
