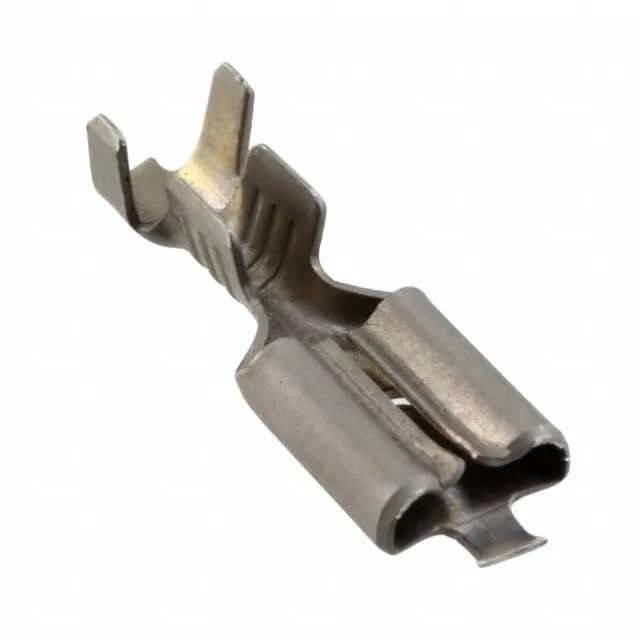

TE Connectivity AMP Faston quick-disconnect receptacle, order code 1742841-1, female, 0.187" (4.75mm) tab width, 0.020" (0.51mm) tab thickness, 16-20 AWG, non-insulated, nickel-plated steel contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-20 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Steel |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.250\" (6.35mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Nickel |
| Insulation diameter | 0.090\" ~ 0.130\" (2.29mm ~ 3.30mm) |
The 1742841-1 is a non-insulated Faston receptacle that accepts 0.187" (4.75mm) wide tabs with 0.020" (0.51mm) thickness. It crimps onto 16-20 AWG wire and uses a nickel-plated steel contact — nickel carries the current without the galvanic corrosion risk of tin on steel in damp environments.
The 1742841-1 is a female receptacle.
The 1742841-1 is ROHS3 compliant.
