Flag terminal for 0.250" tab

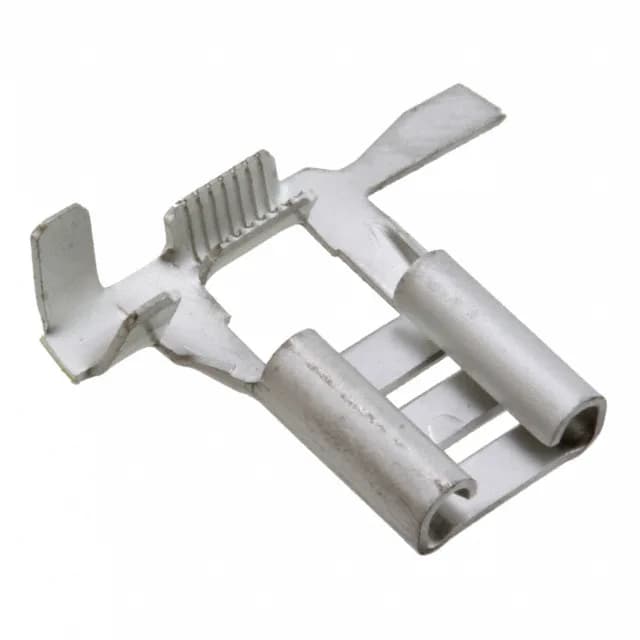

The 1742881-1 is a non-insulated female quick-disconnect terminal in the Amplivar, Faston series, configured as a 90° flag for right-angle wire exit. It accepts 500-1900 CMA wire and crimps onto the conductor; the tin-plated brass contact mates with a 0.250" (6.35mm) tab of 0.032" (0.81mm) thickness.
Crimp and wire range
The crimp termination accepts wire from 500 to 1900 CMA, covering a range that typically corresponds to 18-14 AWG. The flag orientation routes the wire perpendicular to the tab axis, useful for tight spaces where a straight pull is not possible.
