Faston 250 series female receptacle

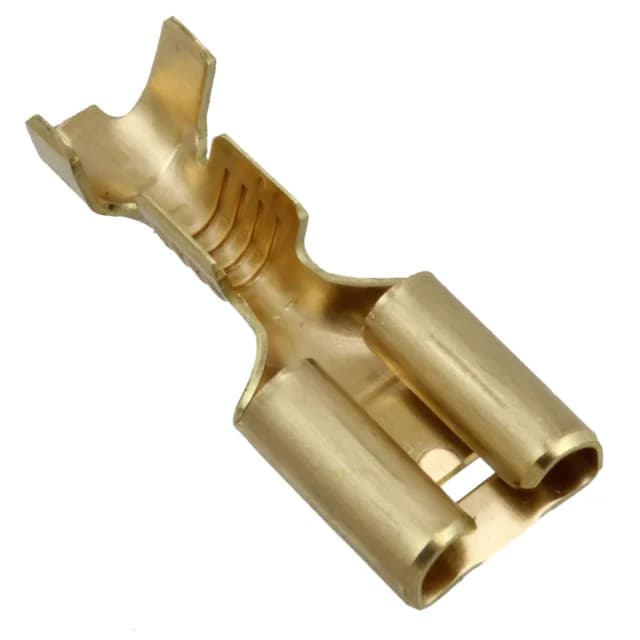

The 1742971-3 is a non-insulated female quick-disconnect receptacle in TE's Faston 250 series, accepting 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. Crimp termination for 14-18 AWG wire; the brass contact body carries the full current path without a secondary insulation sleeve. Overall length is 0.755" (19.18mm).
ROHS3 compliant per the listed documentation.
Wire range and insulation fit
Accepts 14-18 AWG wire; the insulation diameter range is 0.120" to 0.170" (3.05mm to 4.32mm). Free-hanging (in-line) mounting with no additional housing required.
