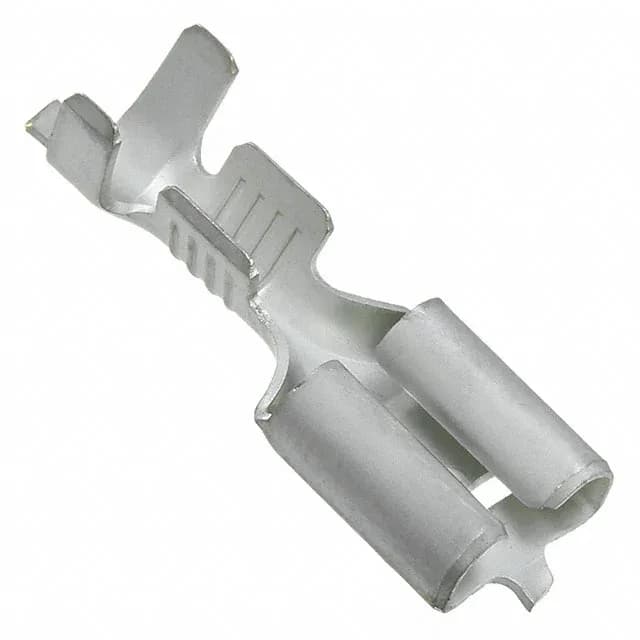

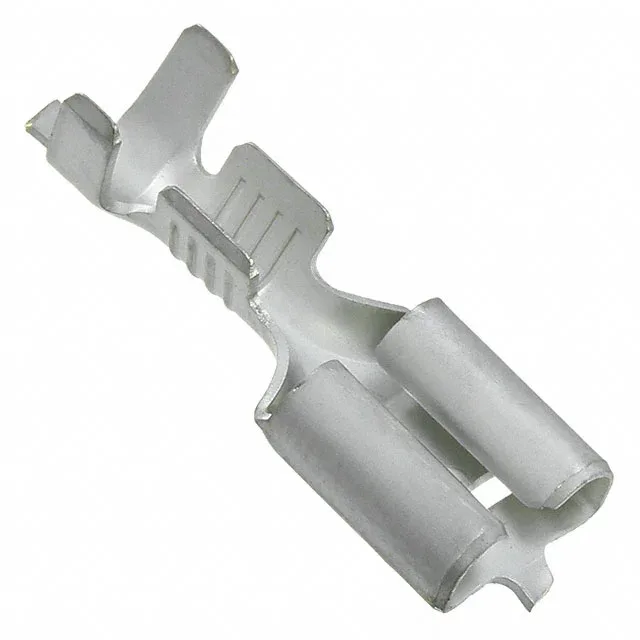

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 1742971-4, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-18 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.755\" (19.18mm) |
| Insulation diameter | 0.120\" ~ 0.170\" (3.05mm ~ 4.32mm) |
The 1742971-4 is a female quick-disconnect terminal from the TE Connectivity Faston series, accepting 14-18 AWG wire and crimped onto the conductor for free-hanging inline termination. Tab width is 0.250" (6.35mm) with a 0.032" (0.81mm) tab thickness; the tin-plated brass contact carries the current path without an insulation sleeve.
The 1742971-4 is available in Tape & Reel (TR) and Cut Tape (CT) packaging. Request a quote for current pricing and lead time based on your BOM quantity.
