TE Connectivity AMP Connectors 1742999-1 — Quick-Disconnect Terminals

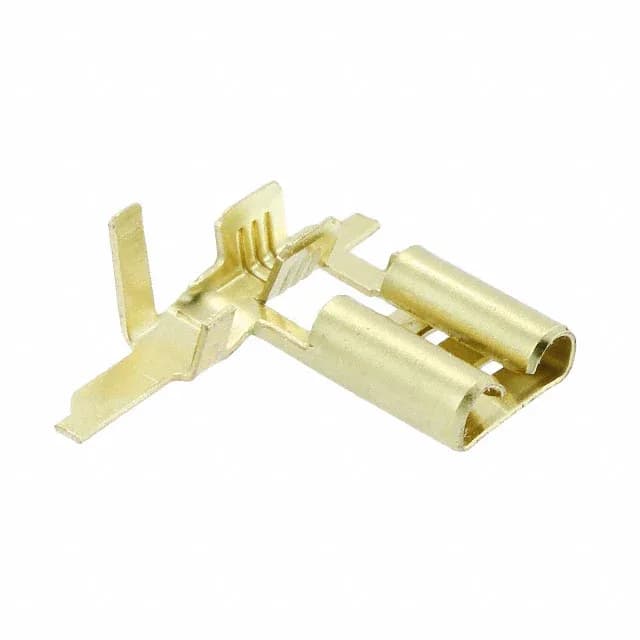

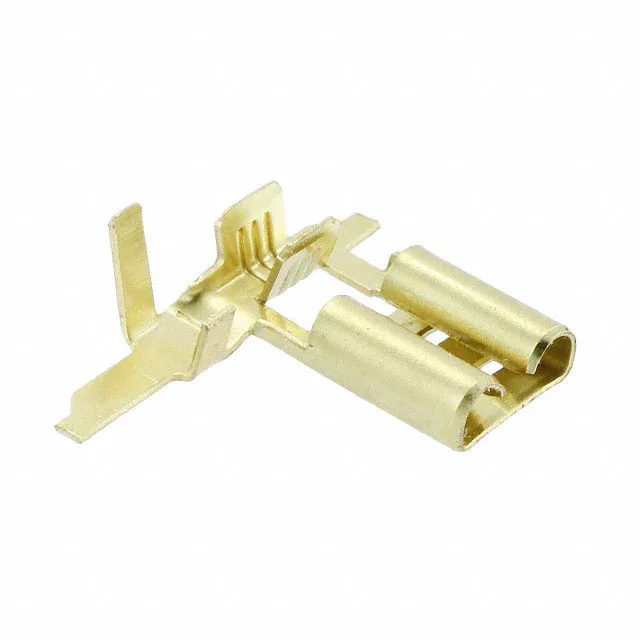

TE 1742999-1 Faston Flag Receptacle 14-18 AWG 0.250"

MPN1742999-1
Active

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 1742999-1, female flag receptacle, 0.250" (6.35mm) tab width, 0.305" (7.75mm) tab length, 14-18 AWG, non-insulated, brass contact, crimp termination, free hanging right-angle.

$0.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1742999-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1742999-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.305\" (7.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Insulation diameter0.110\" ~ 0.160\" (2.79mm ~ 4.06mm)

Product details

Flag receptacle for 0.250" tabs

The 1742999-1 is a non-insulated female flag receptacle in TE's Faston series, accepting 14-18 AWG wire and terminating with a crimp for free-hanging right-angle mounting. Tab width is 0.250" (6.35mm) with a 0.032" (0.81mm) thickness; the brass contact carries no plating finish specified.

Same-series sibling: 1742999-2

The 1742999-2 shares the same 0.250" tab width, 14-18 AWG wire range, crimp termination, and right-angle flag form factor, but adds tin-plated contacts — the only functional difference from the 1742999-1.

Frequently asked questions

What is the closest functional second-source for 1742999-1?

The 1742999-2 is the same series, tab width, wire gauge, and flag form factor, differing only in tin-plated contacts versus the 1742999-1's unplated brass.
