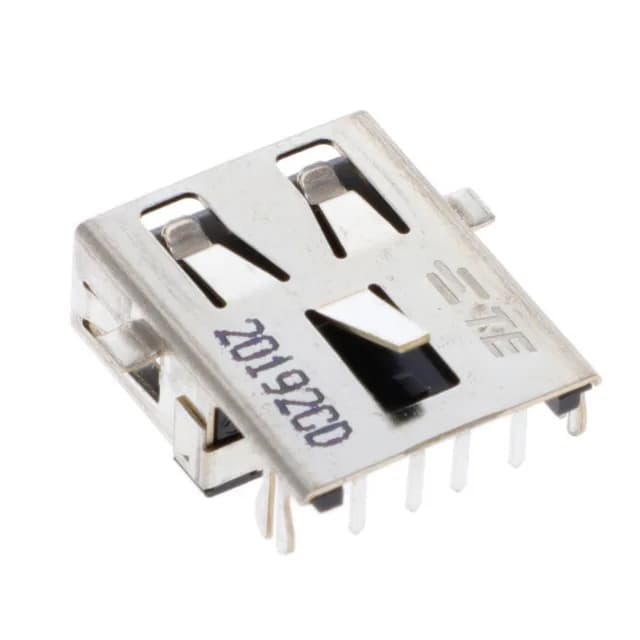

TE Connectivity 1746311-1 USB-A (USB TYPE-A) receptacle, 4 contacts, USB 2.0, right-angle through-hole, board edge cutout mount, gold contact finish, 1 A per contact, 30 VAC, 1500 mating cycles, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Mounting | Board Edge, Cutout; Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 80°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The TE Connectivity 1746311-1 is a USB-A (USB TYPE-A) receptacle, the 4-contact, single-port member of the 1746311 series, specified for USB 2.0. It mounts horizontally at the board edge via a right-angle through-hole footprint, with a cutout in the PCB for the shell.
The 30 VAC rating and 1 A per contact are standard for USB 2.0 power delivery — enough for charging and data sync on most consumer and industrial peripherals.
Yes, the 1746311-1 is RoHS Compliant per the manufacturer.
Yes, the 1746311-1 includes a board lock feature for mechanical retention during soldering and against cable strain.
