HDMI Receptacle for Panel-Mount Applications

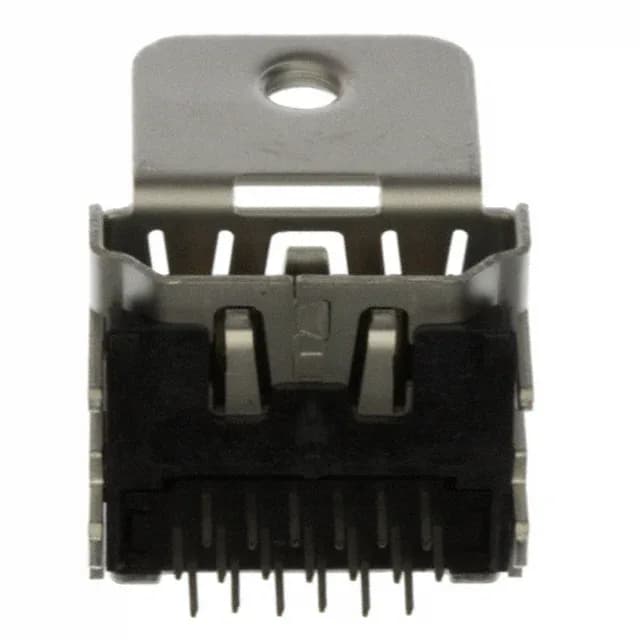

The TE Connectivity 1746679-1 is a 19-contact HDMI receptacle designed for right-angle, through-hole PCB mounting with a panel-mount flange. Rated for 0.5A per contact at 40VAC, this connector handles the signal-level currents typical of HDMI video and audio links. The gold-plated contacts resist corrosion and maintain a stable connection over those repeated mates.
This connector uses through-hole solder termination — the 19 pins go through plated holes on the PCB and are wave-soldered. The panel-mount flange has two holes for screws or rivets to secure it to the chassis or enclosure wall. The shell is made from copper alloy for EMI shielding, which is critical for HDMI's high-speed differential pairs. The single-port design keeps the signal path clean without crosstalk from a second port. The insulation color is black, standard for HDMI connectors.
